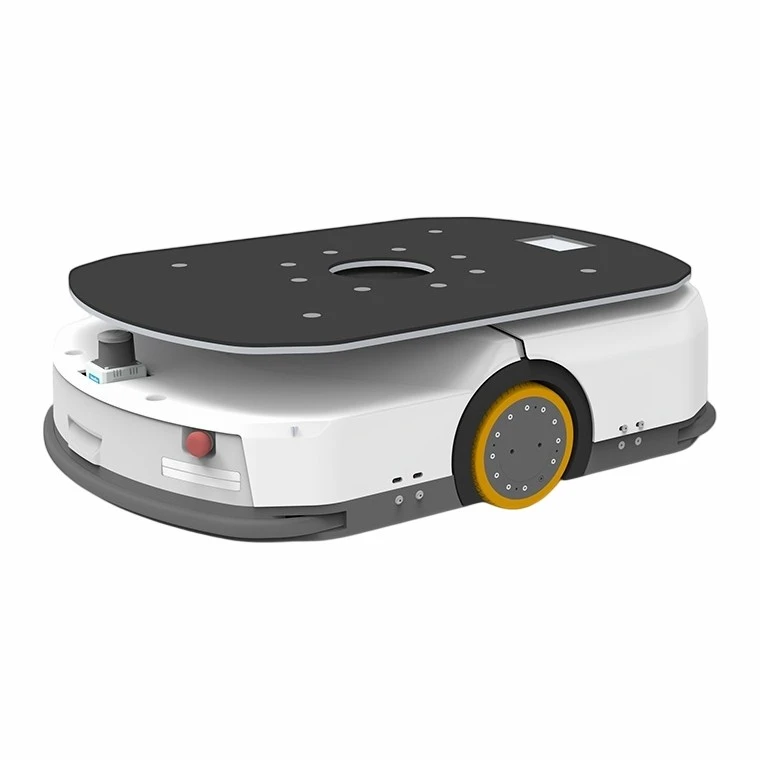

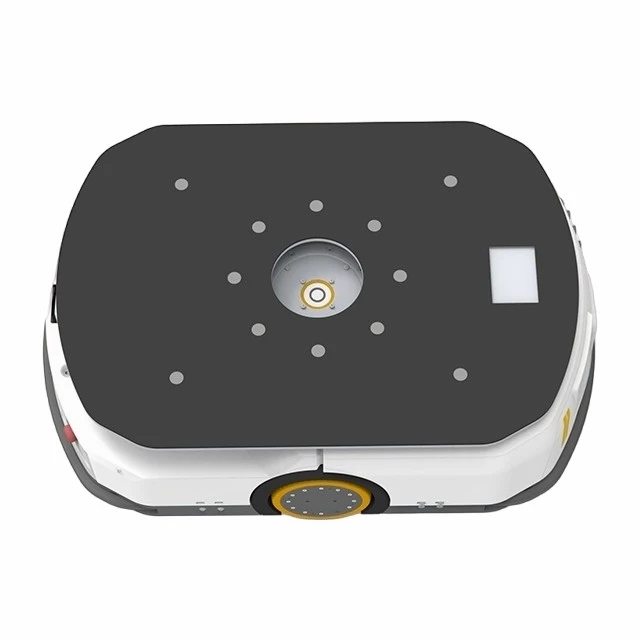

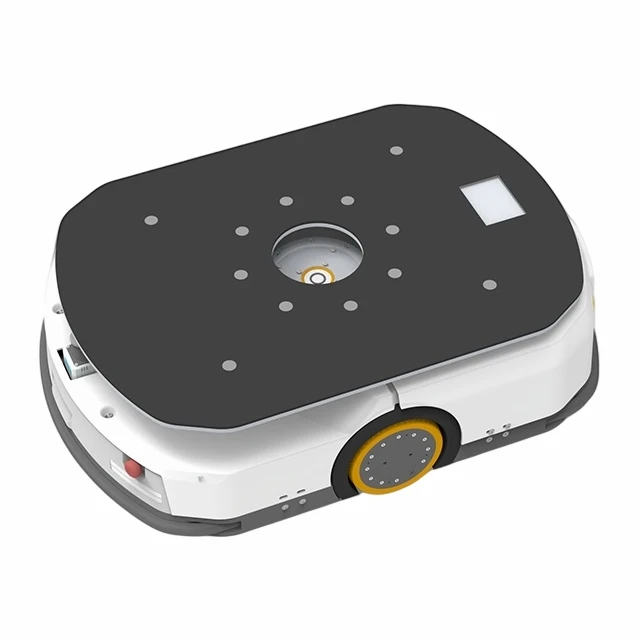

Automated Guided Vehicle 400KG features integrated QR code & laser SLAM navigation to achieve precise positioning. It supports forward, backward and rotary movement, with max 400kg load capacity for lifting, transporting and rotating. Suitable for goods-to-person handling in e-commerce, 3C, tobacco and pharmaceutical industries, customizable attachments are available for diversified applications.
Product Advantage
- Cut manpower cost by replacing manual handling;
- Improve warehouse throughput with round-the-clock automatic operation;
- Reduce cargo damage via stable automatic lifting & transporting;
- Flexible deployment without ground reconstruction.
Technical Parameter
|
Model |
G-400-E |
|||
|
Essential parameter |
External dimensions: L*W*H |
778*540*255 (±5) |
mm |
|
|
Weight |
98 |
Kg |
||
|
Minimum turning radius |
778 |
mm |
||
|
Rated load |
400 |
Kg |
||
|
Chassis ground clearance |
25 |
mm |
||
|
Lift-up panel dimensions |
710*500 |
mm |
||
|
Lift-up Drive |
Motor-driven |
|||
|
Lift height |
60 |
mm |
||
|
Driving Performance |
Rated operating speed / No-load |
1.9 |
m/s |
|
|
Rated operating speed / Rated load |
1.5 |
m/s |
||
|
Acceleration at no load |
0.6 |
m/s2 |
||
|
Acceleration; Rated Load |
0.3 |
m/s2 |
||
|
Rotation speed/No load |
200 |
°/s |
||
|
Rotation speed/Full load |
100 |
°/s |
||
|
Driving Method |
Dual-wheel differential |
|||
|
Position Navigation |
Navigation Method |
Laser Slam or QR Code |
||
|
Laser installation height |
220 |
mm |
||
|
Parking space positioning accuracy |
± 10 |
mm |
||
|
Parking Angle Precision |
± 1 |
° |
||
|
Battery |
Battery type |
Lithium iron phosphate |
||
|
Capacity/Rated Voltage |
16/48 |
Ah/V |
||
|
Standard charging current |
16 |
A |
||
|
Number of charge and discharge cycles |
Full charge: 1500 times |
|||
|
Range under rated operating conditions |
8 |
h |
||
|
Charging time after complete discharge |
≤1.5 |
h |
||
|
Safety Protection |
Pre-laser obstacle avoidance |
Installation height (scan surface) |
203.5 |
mm |
|
Radar elevation angle |
220 |
° |
||
|
Post-laser obstacle avoidance |
Installation height (scan surface) |
201 |
mm |
|
|
Radar elevation angle |
180 |
° |
||
|
Scram button |
Number: 2/1 in front and 1 at the back |
/ |
||
|
Contact Protection |
Piezoelectric edge contact switch |
/ |
||
|
Acoustic and visual alarm |
Standard configuration |
/ |
||
|
Passing Performance |
Chassis shock absorption method |
Two-stage floating chassis |
/ |
|
|
Climbing capacity |
≤5%/3 ° |
%/ ° |
||
|
Step Capability |
≤5 |
mm |
||
|
Adaptability |
≤30 |
mm |
||
Operating Environment Requirements
|
Environment |
Indoor environment |
|
Ground conditions |
Hard cement floor or a conductive plastic floor. |
|
Free from iron filings, oil stains, and corrosive liquids. |
|
|
Maximum seam width should not exceed 10 mm. |
|
|
Slope should not exceed 3°, and at parking locations , it should not exceed 1° . |
|
|
The ground sliding friction coefficient must be no less than 0.5. |
|
|
Temperature |
Work area temperature: -10°C to 40°C Charging area temperature: 0°C to 40°C Special customization is required for cold storage environments. |
|
Humidity |
Relative humidity: 10%-90% without condensation |
|
Signal |
Wi-Fi 2.4G/5 dual-band The wireless signal coverage strength is higher than-70 dBm. |

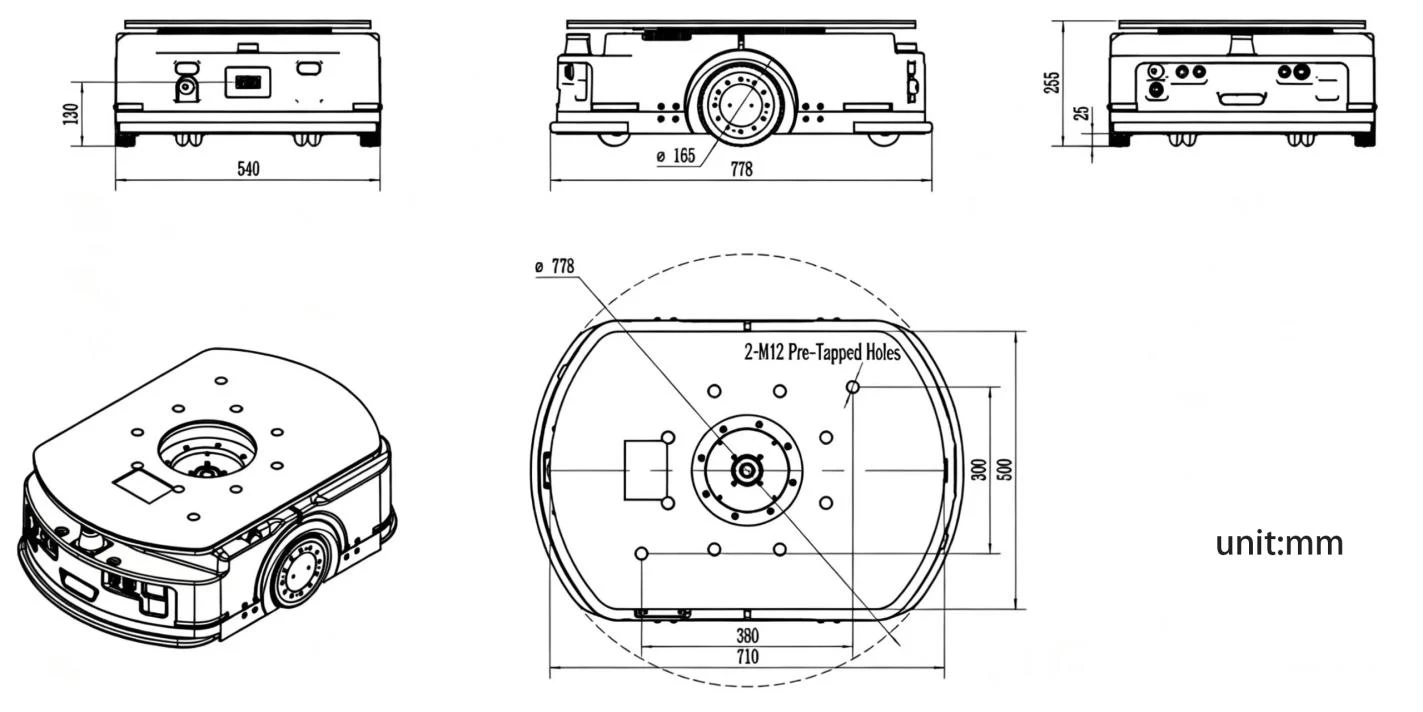

Outline Dimensional Drawing

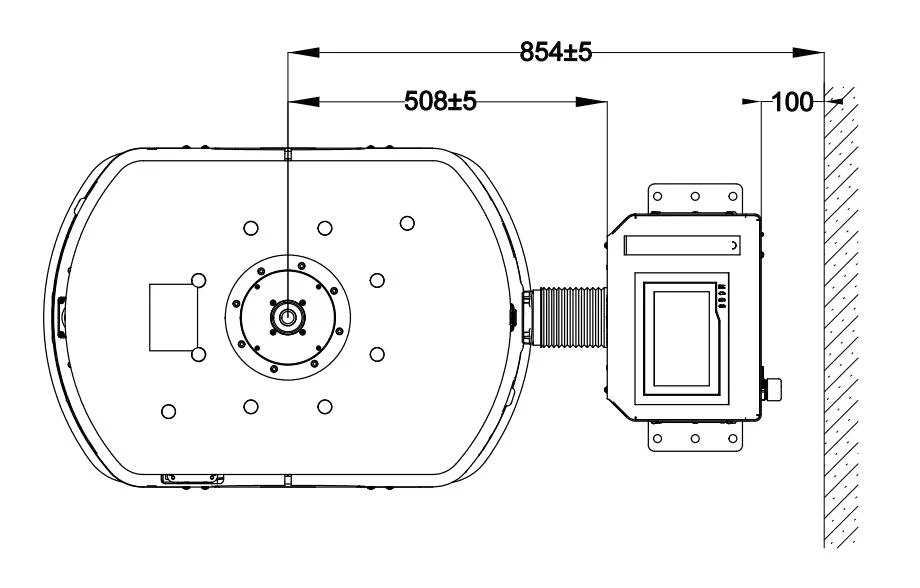

Charging station connection

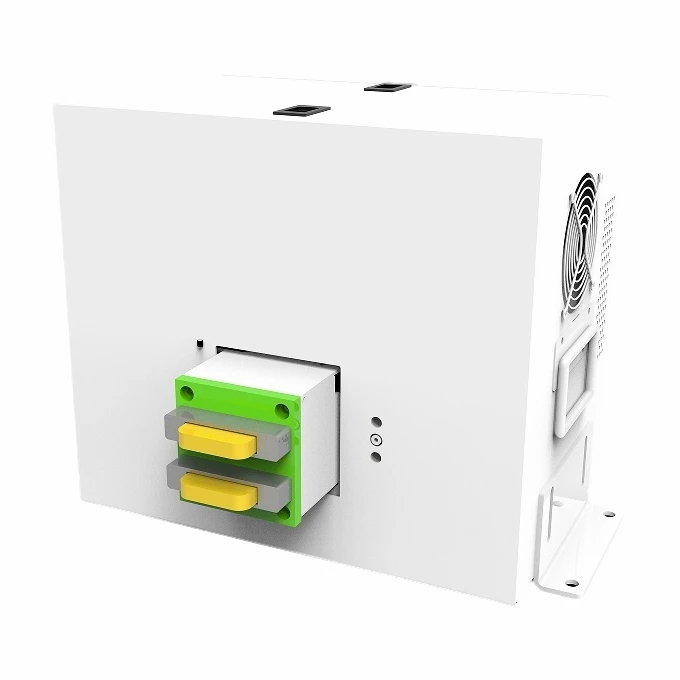

Standard equipped charging station
