Product Overview

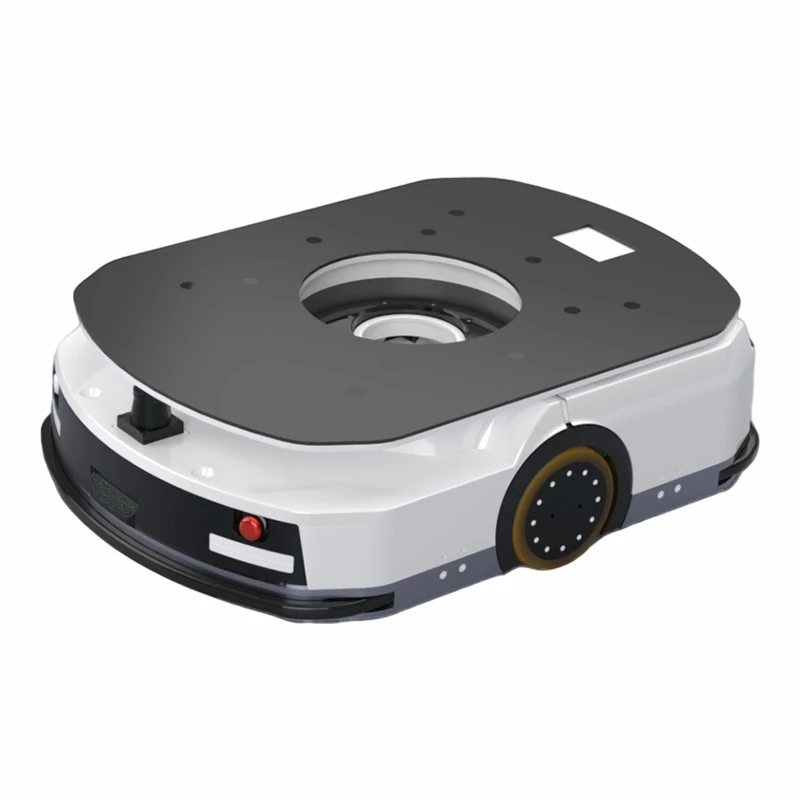

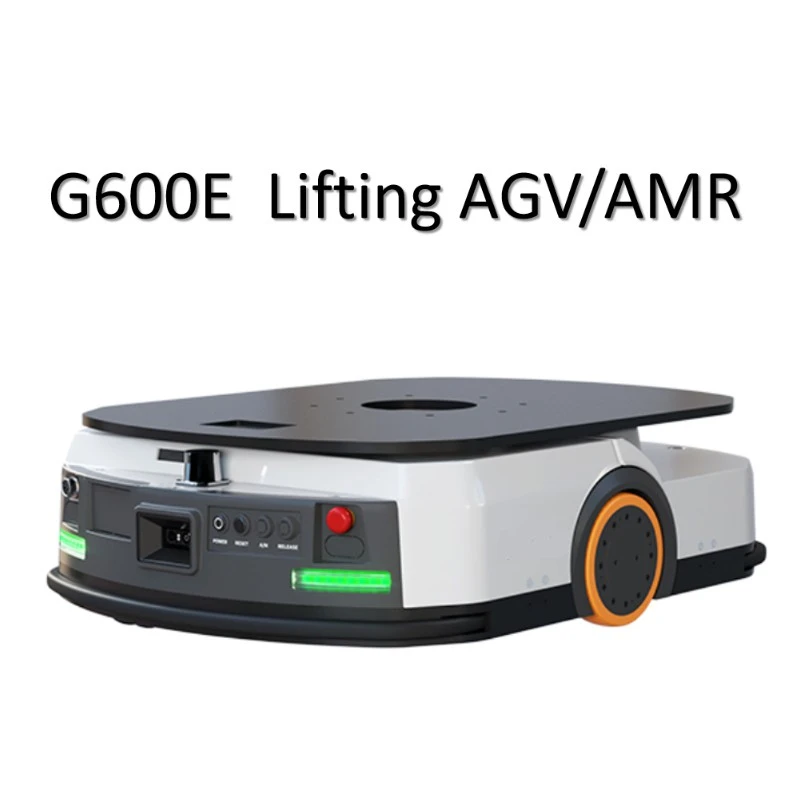

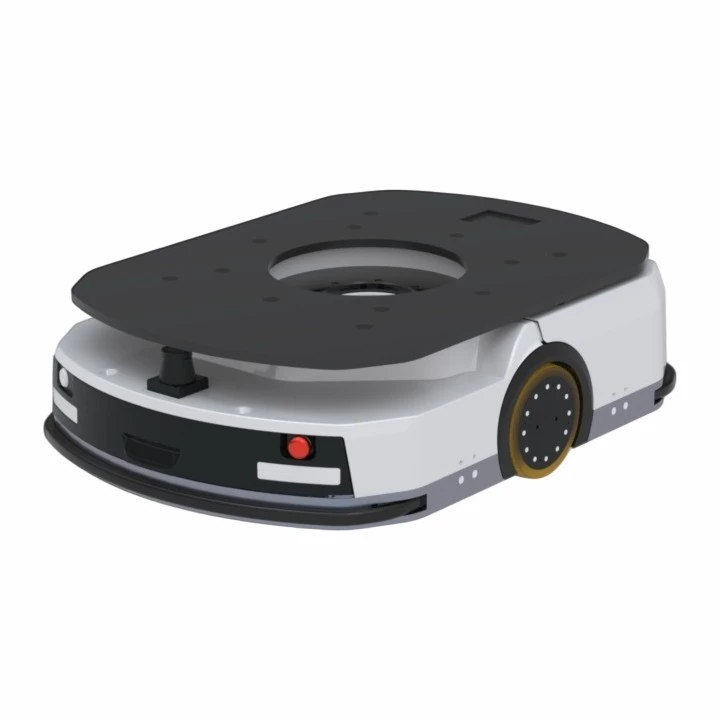

Automated Guided Vehicle 600KG is a high-performance dual-wheel differential drive AGV designed for indoor intelligent material handling. Integrated with QR code navigation & Laser SLAM dual navigation technologies, this robot supports automatic, manual and remote control modes, with a rated load of 600kg. It is widely applied in e-commerce warehousing, 3C electronics, tobacco, pharmaceutical and other industries, delivering stable, efficient and safe logistics automation solutions.

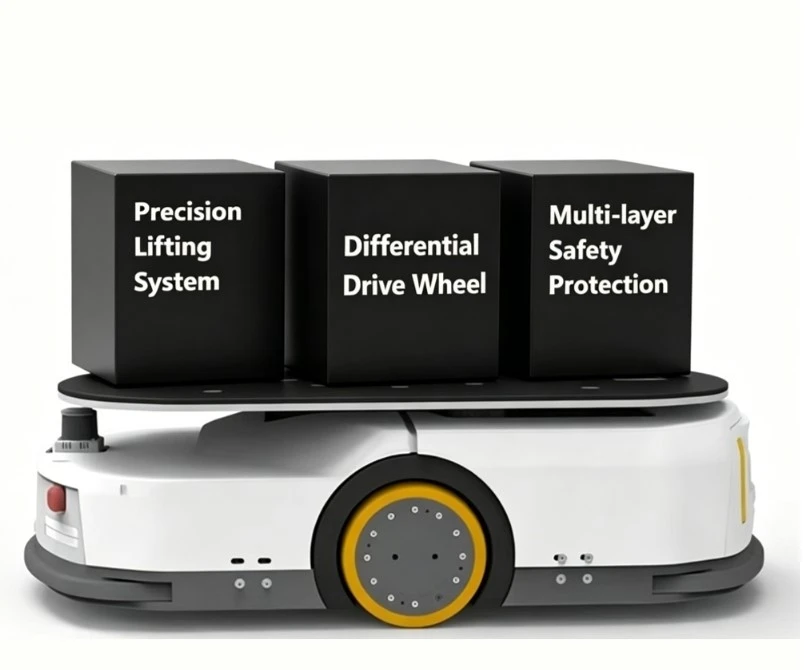

Core Functional Characteristics

Dual Navigation & High Precision Positioning: Adopt QR code and Laser SLAM integrated navigation. Parking positioning accuracy reaches ±10 mm, parking angle precision ±1°, adapting to standard 1000×1000 mm QR code layout and unequal spacing arrangement.

Flexible Motion Performance: Dual-wheel differential drive structure. No-load speed up to 1.9 m/s, full-load speed 1.5 m/s; maximum rotation speed 200°/s (no load), minimum turning radius 965 mm for flexible operation in narrow spaces.

Smart Power Management: Lithium iron phosphate battery (24V/48V) with 1500 full charge-discharge cycles. Support multi-level battery threshold setting and off-peak charging; full charging time ≤1.5 hours, continuous working time up to 8 hours under rated conditions.

Full-range Safety Protection: Equipped with front laser obstacle avoidance, contact edge collision protection, dual emergency stop buttons and audio-visual alarm system to ensure personnel and equipment safety.

Diversified Connectivity & Expandability: Built-in Wi-Fi (2.4G/5G dual-band) with seamless roaming, reserved 5G expansion interface. Customizable load attachments to meet diversified handling demands.

Strong Passing Ability: Two-stage floating chassis design, maximum climbing capacity ≤3° (5%), step crossing ≤5 mm, adapting to complex indoor ground conditions.

Main Technical Parameters (Key Data)

Item	Parameter
Overall Dimension (L×W×H)	950×650×250 mm
Net Weight	130 kg
Rated Load	600 kg
Lift Height	60 mm
Navigation Mode	Laser SLAM / QR Code
Battery Type	Lithium iron phosphate

Our Company Advantages

1. Rich project experience in intelligent logistics equipment, providing one-stop AGV system design, deployment and after-sales service.
2. Independent R&D on core control algorithms and hardware, ensuring stable product operation and convenient later maintenance.
3. Complete accessory system: supporting charging pile, handheld charger, slope and debugging tools for overall solution matching.
4. Strict factory testing, all products run stably for a long time under 7×24-hour working conditions.

FAQ

Q1: What navigation modes does the robot support? Can I switch freely?

A: It supports Laser SLAM and QR code dual navigation, which can be switched according to on-site environment. It adapts to both fixed-path and flexible dynamic working scenarios.

Q2: What is the continuous working time and charging efficiency?

A: The continuous working time is 8 hours under rated load. It takes less than 1.5 hours to fully charge after complete discharge, supporting off-peak charging to save power cost.

Q3: What kind of ground is suitable for this AGV?

A: Hard cement floor or conductive plastic floor is recommended. The ground slope shall not exceed 3° (1° for precise parking area), and the maximum seam width ≤10 mm.
