Core Advantages

Cut down labor costs significantly by taking over manual material handling tasks.
Run continuously round the clock to raise overall warehouse operational efficiency and throughput.
Featuring reliable lifting and conveying structures, it effectively reduces the risk of goods damage during transit.
Easy to put into service on site; no large-scale floor renovation or structural adjustments are needed.

Why Choose Our Solutions

We boast solid expertise in hardware & software integration as well as full-cycle project delivery, enabling end-to-end automated workflows for warehouse material handling, order picking and goods sorting. Powered by our in-house developed IWMS and RCS intelligent scheduling platforms, along with self-developed AI algorithms, our robotic systems support combined operation of multiple devices. They can also connect smoothly with automated rack systems, conveyor belts, freight elevators and other mainstream warehouse automation equipment.

Full Technical Specifications

Basic Parameters

Item	Parameter
Overall Dimension (Length × Width × Height)	778×540×255 (±5)mm
Net Weight	98kg
Minimum Turning Radius	778mm
Rated Load	400kg
Ground Clearance	25mm
Size of Lifting Platform	710×500mm
Lifting Drive Type	Motor driven
Max Lifting Stroke	60mm

Driving Performance

Item	Parameter
Travel Speed (No Load)	1.9m/s
Travel Speed (Full Load)	1.5m/s
Acceleration (No Load)	0.6m/s²
Acceleration (Full Load)	0.3m/s²
Rotating Speed (No Load)	200°/s
Rotating Speed (Full Load)	100°/s
Driving Structure	Dual-wheel differential drive

Positioning & Navigation

Item	Parameter
Navigation Mode	Dual-mode: Laser SLAM / QR Code Navigation
Mounting Height of Laser Sensor	220 mm
Horizontal Positioning Accuracy	±10 mm
Angular Positioning Accuracy	±1 °

Power System

Item	Parameter
Battery Type	Lithium iron phosphate battery
Rated Voltage & Capacity	48 V / 16 Ah
Standard Charging Current	16A
Service Life	1500 full charge-discharge cycles
Continuous Working Time (Rated Load)	8h
Full Charging Duration	≤1.5h

Safety Protection Configuration

Item	Details
Front Laser Anti-collision	Mount height: 203.5 mm, scanning angle: 220°
Rear Laser Anti-collision	Mount height: 201 mm, scanning angle: 180°
Emergency Stop Buttons	2 pieces (one at front, one at rear)
Contact Anti-collision Device	Piezoelectric edge contact switch
Audible & Visual Alarm	Standard configuration

Pass ability & Adaptability

Item	Parameter
Chassis Shock-absorbing Design	Two-stage floating structure
Max Climbing Gradient	≤5% (3°)
Max Step Crossing Height	≤5 mm
Tolerable Ground Unevenness	≤30 mm

Frequently Asked Questions

Q1: Do we need to pave magnetic strips or modify the ground before deploying the Rotary Robot 400KG?

A: Not required. Equipped with laser SLAM navigation technology, the robot works without magnetic tapes, QR code tracks or positioning markers. Simply complete on-site mapping, and it can start operation quickly.

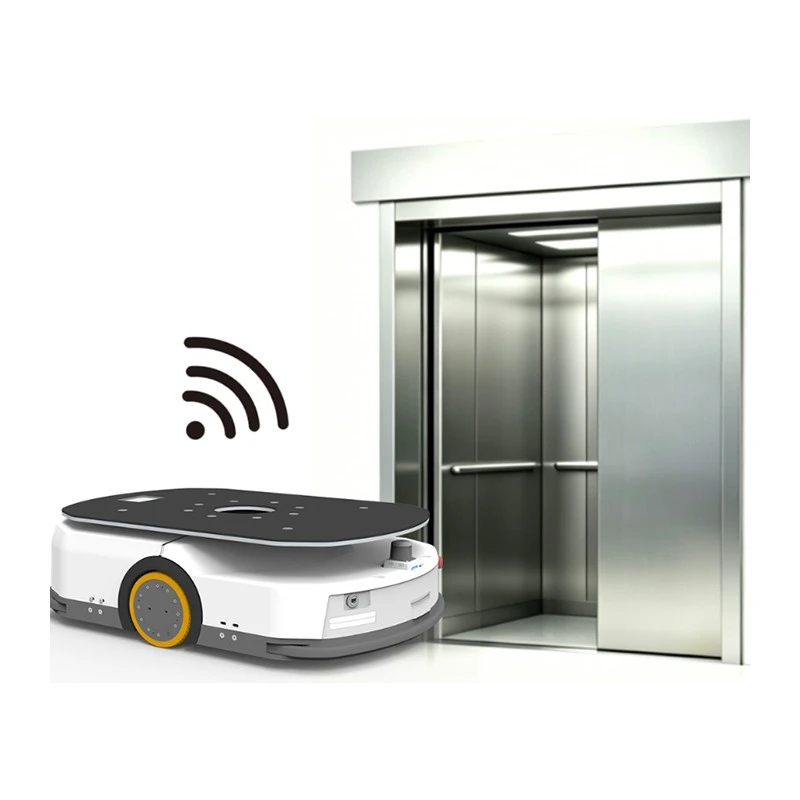

Q2: Is it possible to connect the robot with elevators and automatic factory doors?

A: Yes. We provide optional linkage functions for elevators and automatic doors, realizing fully unmanned material delivery across different floors.

Q3: What kinds of transport tasks can this robot perform?

A: It supports one-point distribution, multi-point goods collection & delivery, cart and shelf towing, as well as lifting transportation to meet diverse operational demands.

Q4: Do staff need to charge the robot manually when power is low?

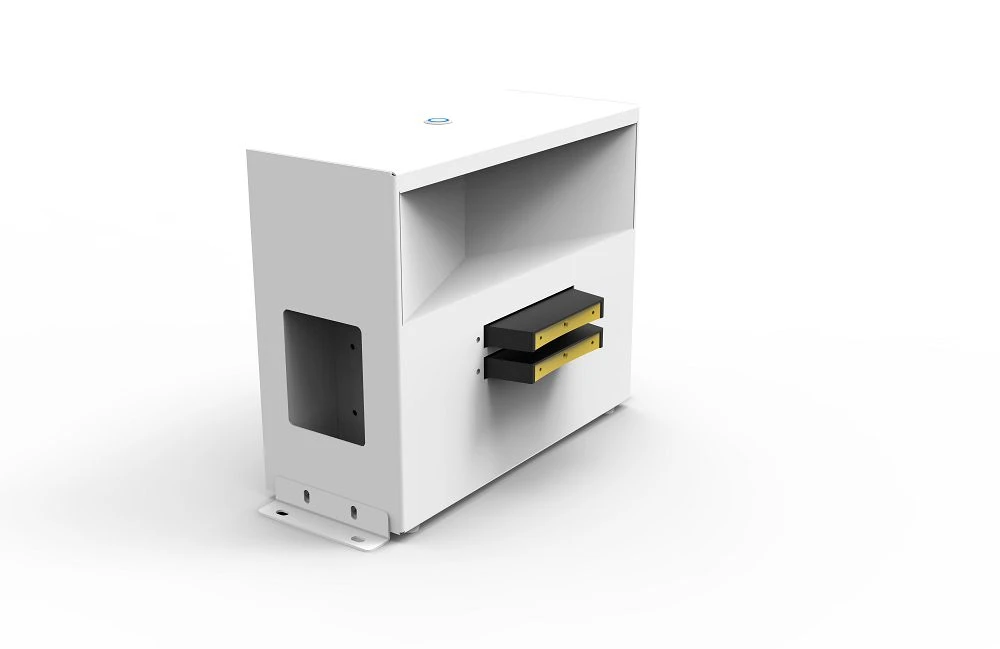

A: No. The auto-charging function allows the robot to actively move to the charging station when battery level is insufficient, ensuring 24-hour uninterrupted operation.

Q5: Can the robot link to our existing WMS system?

A: Customized interfaces are available. It can connect seamlessly with WMS and WCS systems to help you achieve digital and intelligent warehouse management.
