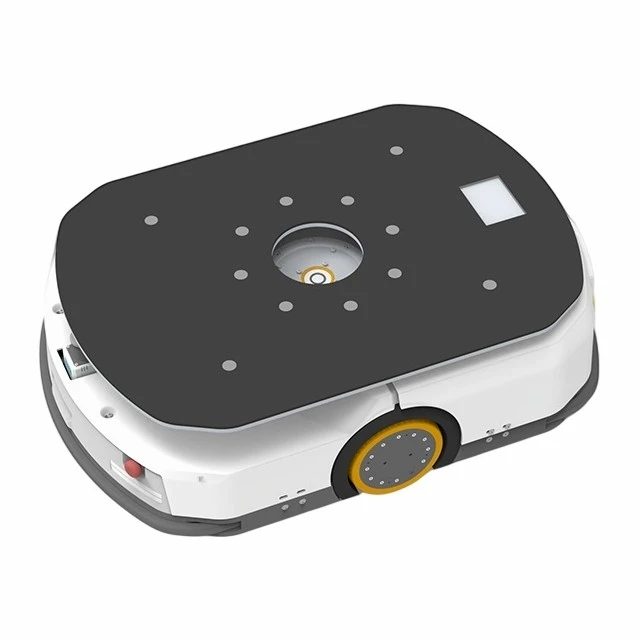

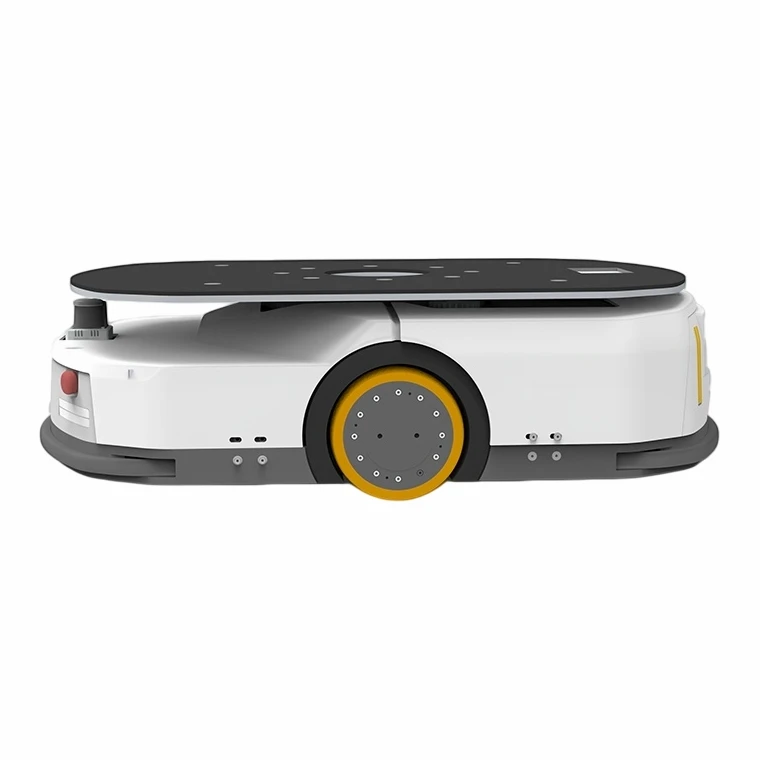

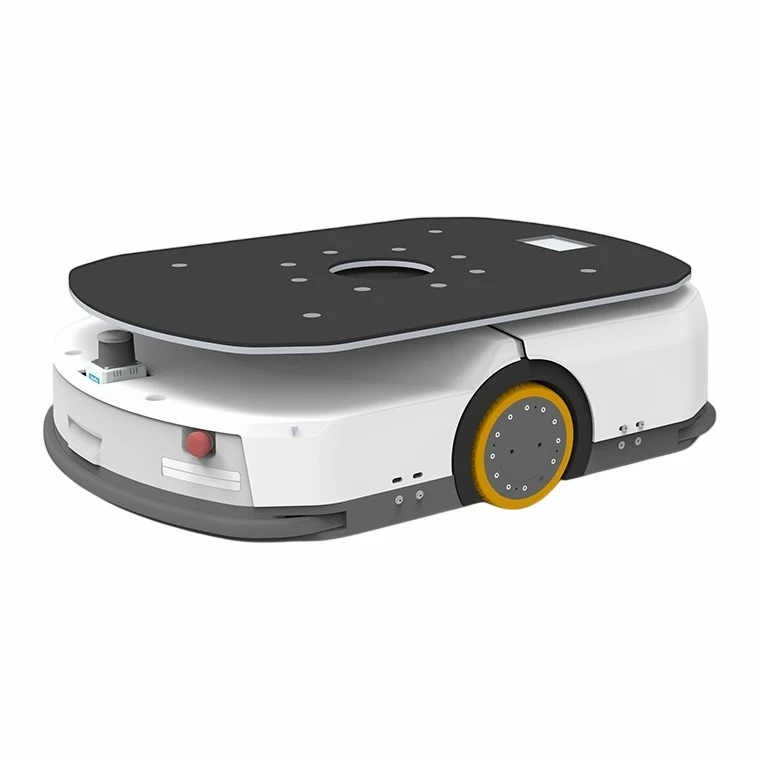

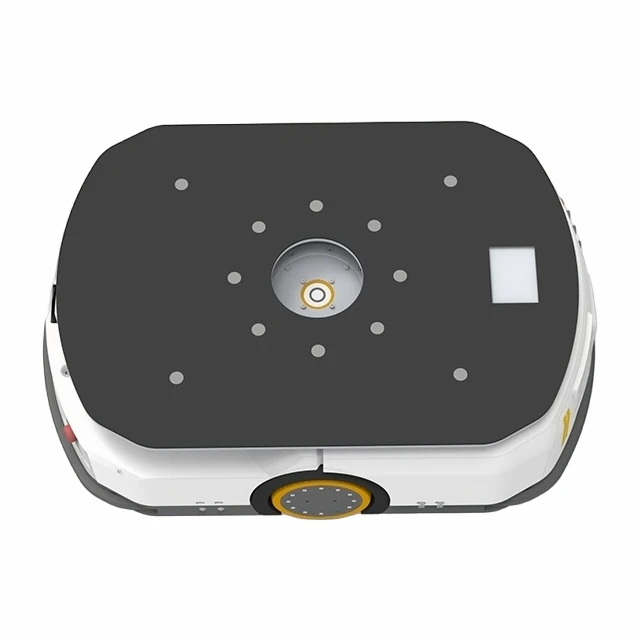

The G400E Jacking mobile robot adopts dual navigation modes combining QR code recognition and laser SLAM, delivering high-precision positioning performance. It supports forward, backward and spot rotation movements, with a rated load of 400kg. The device can complete material lifting, transportation and rotational handling tasks efficiently. It is widely applied to goods-to-person logistics scenarios across e-commerce, 3C electronics, tobacco and pharmaceutical industries. Customized accessories are also available to meet diverse on-site operation demands.

Product Advantages

Cut labor expenditure effectively by replacing manual material handling work
Achieve non-stop automated operation around the clock to boost overall warehouse throughput
Adopt stable automatic lifting and conveying structure to lower the rate of cargo damage
Realize rapid on-site deployment with no need for ground reconstruction or major renovation

Technical Specifications

Technical Parameter

Essential parameter	External dimensions: LWH		778540255 (±5)	mm
	Weight		98	Kg
	Minimum turning radius		778	mm
	Rated load		400	Kg
	Chassis ground clearance		25	mm
	Lift-up panel dimensions		710*500	mm
	Lift-up Drive		Motor-driven
	Lift height		60	mm
Driving Performance	Rated operating speed / No-load		1.9	m/s
	Rated operating speed / Rated load		1.5	m/s
	Acceleration at no load		0.6	m/s2
	Acceleration; Rated Load		0.3	m/s2
	Rotation speed/No load		200	°/s
	Rotation speed/Full load		100	°/s
	Driving Method		Dual-wheel differential
Position Navigation	Navigation Method		Laser Slam or QR Code
	Laser installation height		220	mm
	Parking space positioning accuracy		± 10	mm
	Parking Angle Precision		± 1	°
Battery	Battery type		Lithium iron phosphate
	Capacity/Rated Voltage		16/48	Ah/V
	Standard charging current		16	A
	Number of charge and discharge cycles		Full charge: 1500 times
	Range under rated operating conditions		8	h
	Charging time after complete discharge		≤1.5	h
Safety Protection	Pre-laser obstacle avoidance	Installation height (scan surface)	203.5	mm
		Radar elevation angle	220	°
	Post-laser obstacle avoidance	Installation height (scan surface)	201	mm
		Radar elevation angle	180	°
	Scram button		Number: 2/1 in front and 1 at the back	/
	Contact Protection		Piezoelectric edge contact switch	/
	Acoustic and visual alarm		Standard configuration	/
Passing Performance	Chassis shock absorption method		Two-stage floating chassis	/
	Climbing capacity		≤5%/3 °	%/ °
	Step Capability		≤5	mm
	Adaptability		≤30	mm

FAQ

Q1: Is ground modification or magnetic strip laying required for robot deployment?

A: No. Adopting laser SLAM navigation, no magnetic strips, QR tracks or positioning markers are needed. Only quick on-site mapping is required before operation.

Q2: Can the robot link up with elevators and factory automatic doors?

A: Optional linkage with elevators and automatic doors is available to realize fully unmanned cross-floor transportation.

Q3: What handling modes does the robot support?

A: It supports single-point delivery, multi-point loading & delivery, trolley/rack towing, lifting transportation and other working modes.

Q4: Does manual charging become necessary when power runs low?

A: Equipped with auto-charging function, the robot automatically docks with chargers at low battery for nonstop 24/7 operation.

Q5: Can it connect with customers' existing WMS?

A: Custom interfaces are optional for seamless WMS/WCS connection to realize digital warehouse management.
