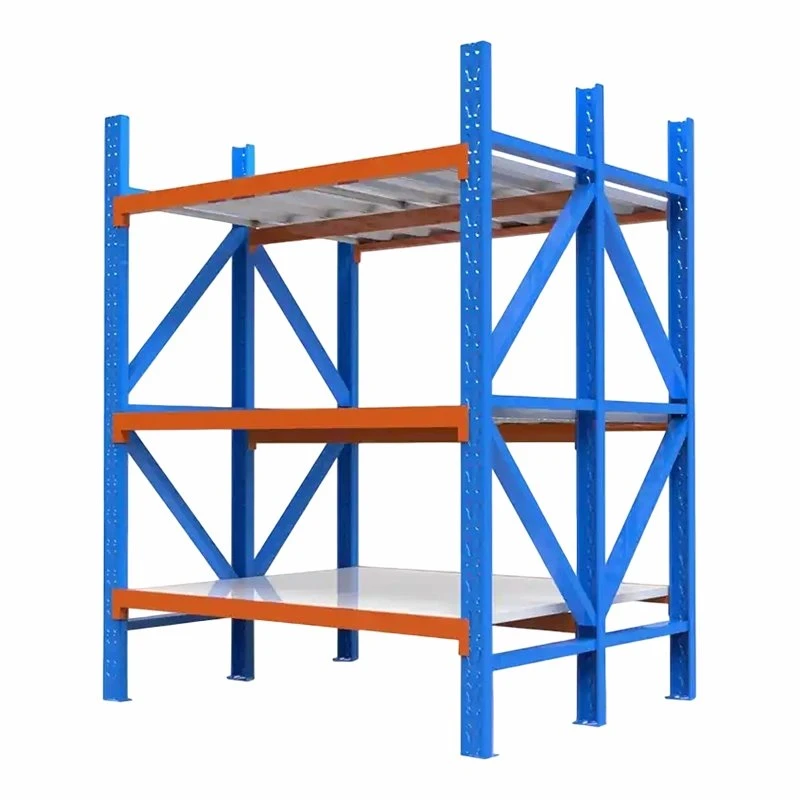

Product Overview

Warehouse storage rack is the fundamental infrastructure of modern warehousing and logistics systems, designed for systematic cargo storage, vertical space utilization and efficient inventory management. Manufactured with high-strength structural steel and modular assembly design, it accommodates various storage units including pallets, plastic totes, cartons, long materials and irregular goods. It works compatibly with manual picking, forklift handling and automated storage equipment (such as stacker cranes and AGVs). Available in multiple structural forms to match different throughput, load capacity and warehouse layout demands, it is widely applied to improve storage density, optimize picking workflow and reduce operational cost.

Main Rack Types & Features

Rack Type	Core Feature	Typical Application

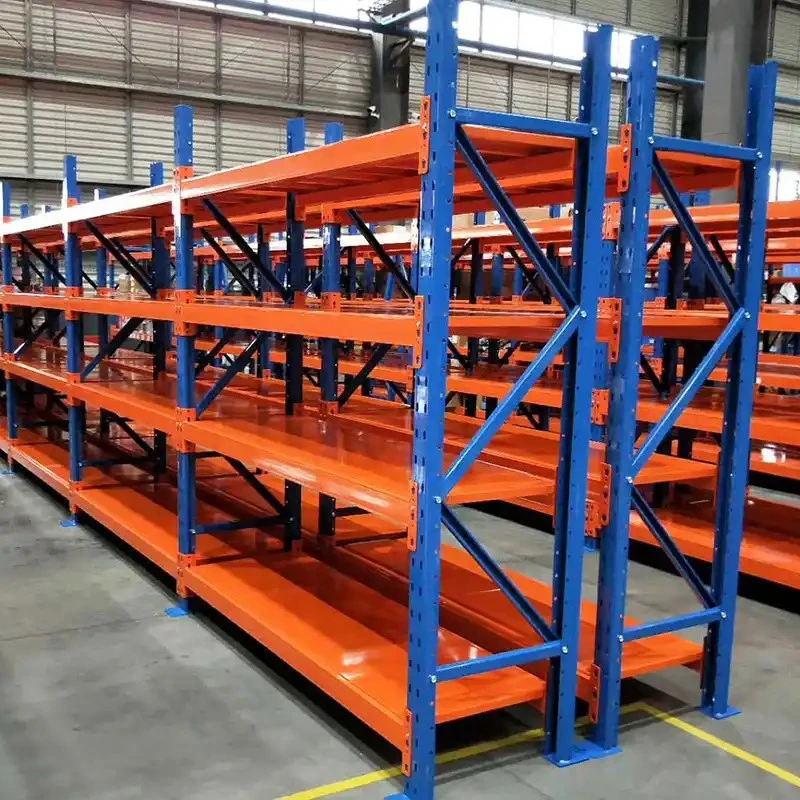

Selective Pallet Rack	The most universal beam-type rack, 100% direct access to each pallet, flexible SKU management, easy to assemble and adjust	Bulk finished goods warehouse, raw material storage, third-party logistics

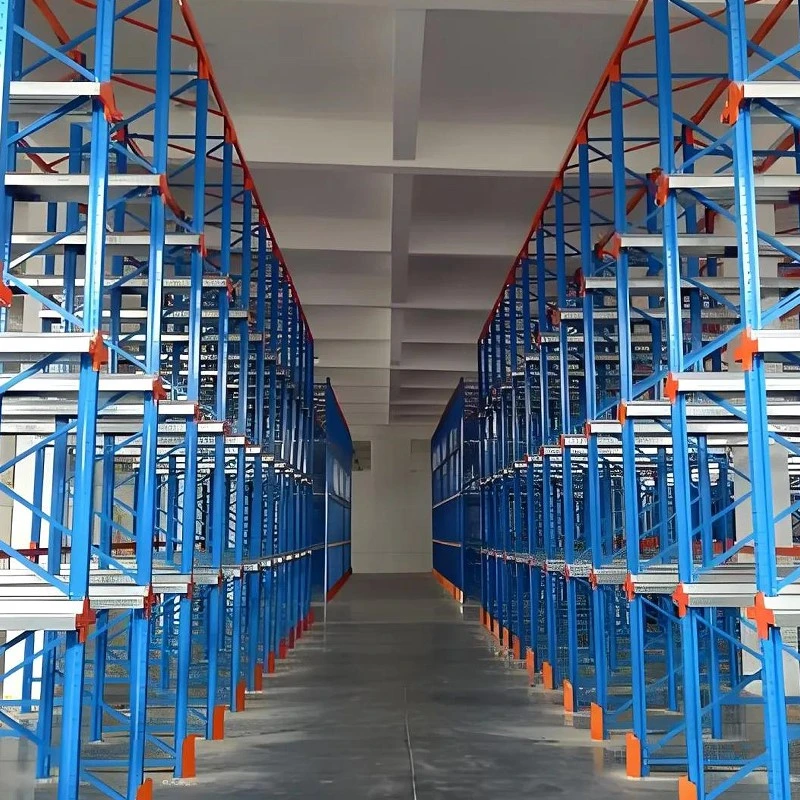

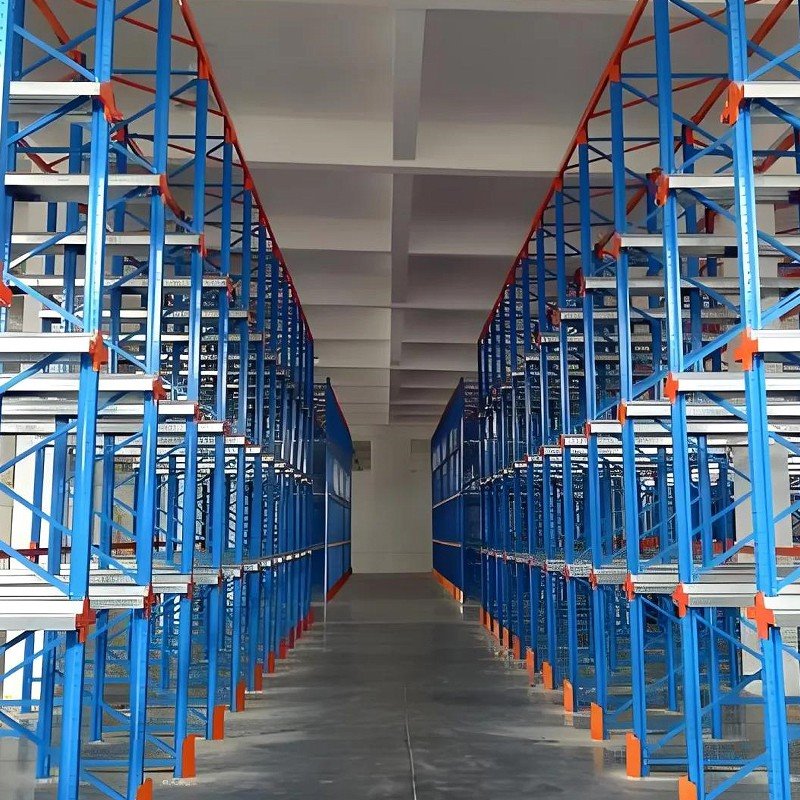

Drive-in / Drive-through Rack	High-density storage design, forklift drives into rack aisles, reduces aisle space by 60%	Large-batch single-SKU goods, cold chain storage, FMCG bulk warehouse
Mezzanine Floor Rack	Builds 2-3 floor levels on existing warehouse space, combines rack and platform, suitable for small parts and manual picking	E-commerce spare parts, auto components, electronic accessories storage
Cantilever Rack	Single-side or double-side cantilever structure, specially for long, tubular and irregular materials	Steel pipe, timber, aluminum profile, furniture manufacturing warehouse
Carton Flow Rack	Equipped with roller conveyor, goods slide from replenishment side to picking side automatically, FIFO principle	Order picking center, e-commerce fulfillment, small parts sorting
AS/RS High-bay Rack	Precision-manufactured heavy-duty rack, matched with stacker cranes for fully automatic operation, supports height up to 40m	Automated stereoscopic warehouse, pharmaceutical GMP storage, lithium battery workshop

General Technical Specifications

Item	Parameter Range	Notes
Frame Material	High quality Q235 / Q355 carbon steel	Standard industrial grade steel
Surface Treatment	Electrostatic powder coating, 60~80μm thickness	Corrosion resistant, smooth finish, RAL color customizable
Load Capacity per Level	100 ~ 5000 kg	Light-duty for cartons, heavy-duty for pallets
Single Rack Height	2m ~ 12m (conventional forklift type); 15m ~ 40m (AS/RS automated type)	Customized according to warehouse clear height
Beam Length	1200mm / 1500mm / 1800mm / 2000mm / 2700mm	Fits standard Euro pallet / GMA pallet
Frame Depth	800mm / 900mm / 1000mm / 1100mm / 1200mm	Matches pallet depth
Adjustment Step	50mm / 75mm / 100mm	Flexible beam height adjustment
Service Life	10 ~ 20 years under normal operation	Depends on load and environment

Core Advantages

High-strength cold-rolled steel structure, stable load bearing, compliant with ISO and CE structural safety standards
Modular bolted assembly, no on-site welding required, convenient transportation and fast installation
Flexible layout design, customized according to warehouse size, cargo specification and handling equipment
Uniform electrostatic powder coating, scratch resistant, corrosion resistant, suitable for dry and cold storage environments
100% expandable structure, supports later extension, relocation and reconfiguration
Compatible with various warehouse management systems and automated equipment, supports upgrading to AS/RS solution
Multiple safety accessories available: row spacers, back guards, column protectors, wire mesh decks, safety pins

Applicable Industries

E-commerce fulfillment centers, manufacturing raw material warehouses, cold chain & frozen food storage, pharmaceutical & healthcare storage, automobile spare parts warehouses, 3C electronics workshops, retail distribution centers, third-party logistics (3PL) hubs, library & document archives
