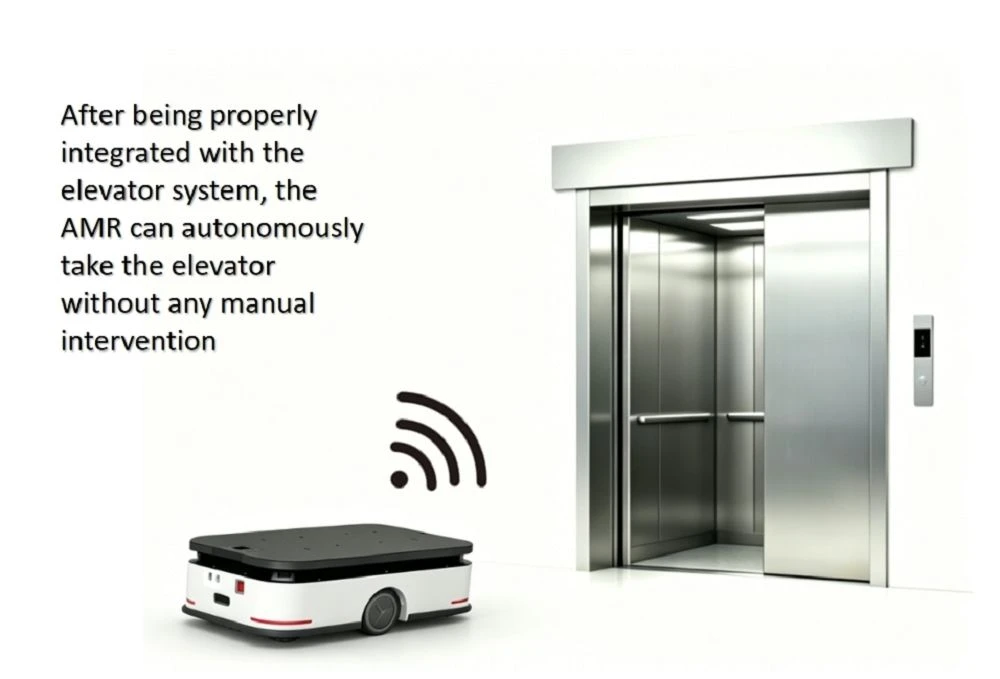

Automatic door linkage

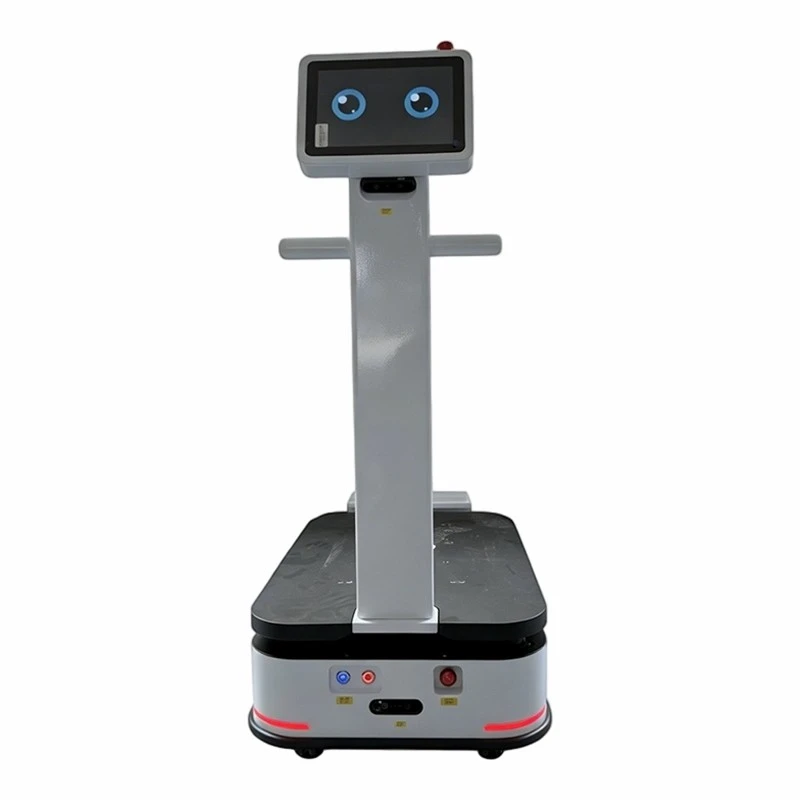

Basic Parameters
|
Parameter |
Value |
Description |
|
Dimensions (L×W×H) |
800 × 540 × 1250 mm |
Overall size of the robot |
|
Lifting Height |
50 mm |
Maximum lifting stroke for cargo handling |
|
Weight |
100 kg |
Net weight of the robot itself |
|
Rated Load Capacity |
300 kg |
Maximum payload the robot can carry |
|
Navigation Method |
SLAM |
Simultaneous Localization and Mapping for autonomous navigation |
Battery Performance
The robot is equipped with a lithium iron phosphate (LiFePO4) battery, which features high safety performance and a long service life. The system runs at a rated voltage of 48V. The battery can withstand over 1500 charge and discharge cycles before obvious capacity decline. It supports up to 8 hours of continuous operation when fully charged, and can be fully replenished within 1.5 hours.
Why choose Ginnee?
Our team boasts rich experience in software and hardware integration as well as turnkey project implementation. We are able to build fully automated workflows covering warehouse transportation, precise order picking and high-speed goods sorting. Powered by our self-developed IWMS warehouse management system, RCS scheduling platform and in-house AI algorithms, our robotic units support combined operation. They can also connect flawlessly with automated rack systems, conveyor lines, cargo elevators and other standard warehouse automation devices.

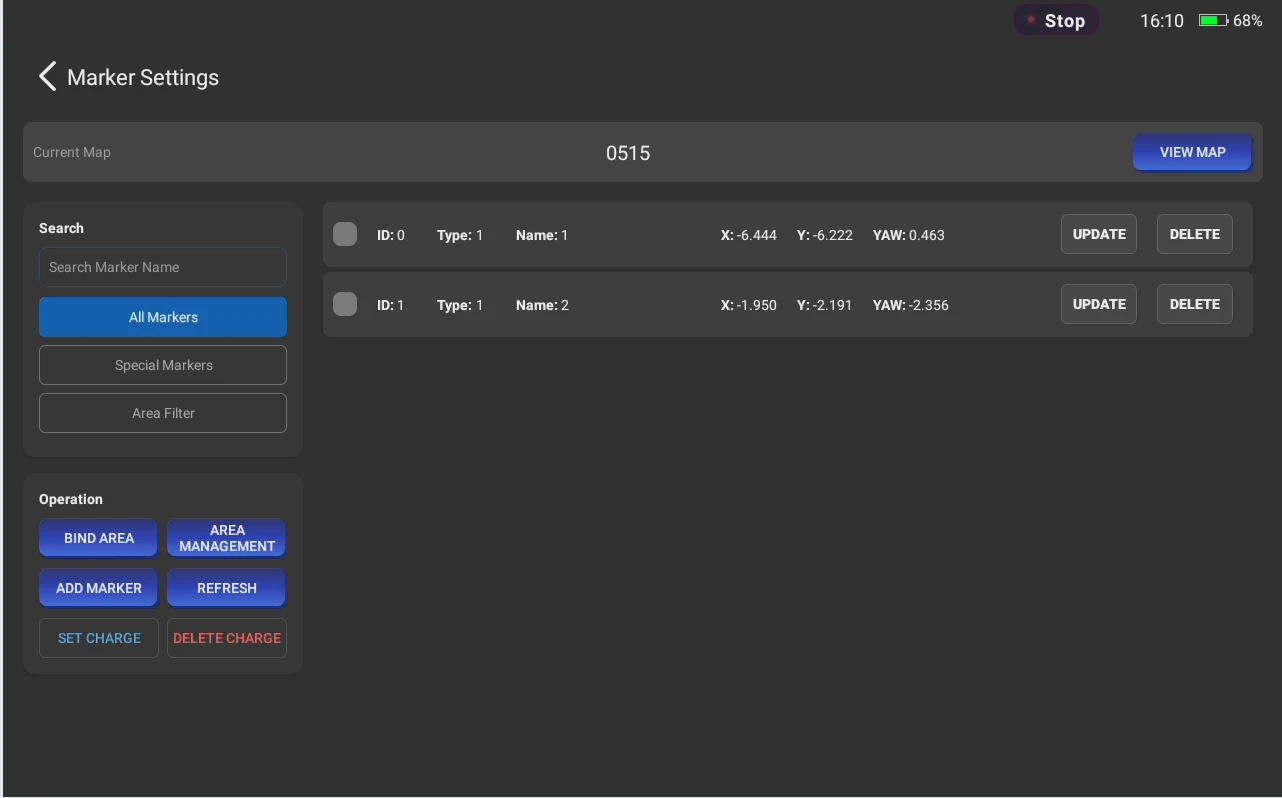

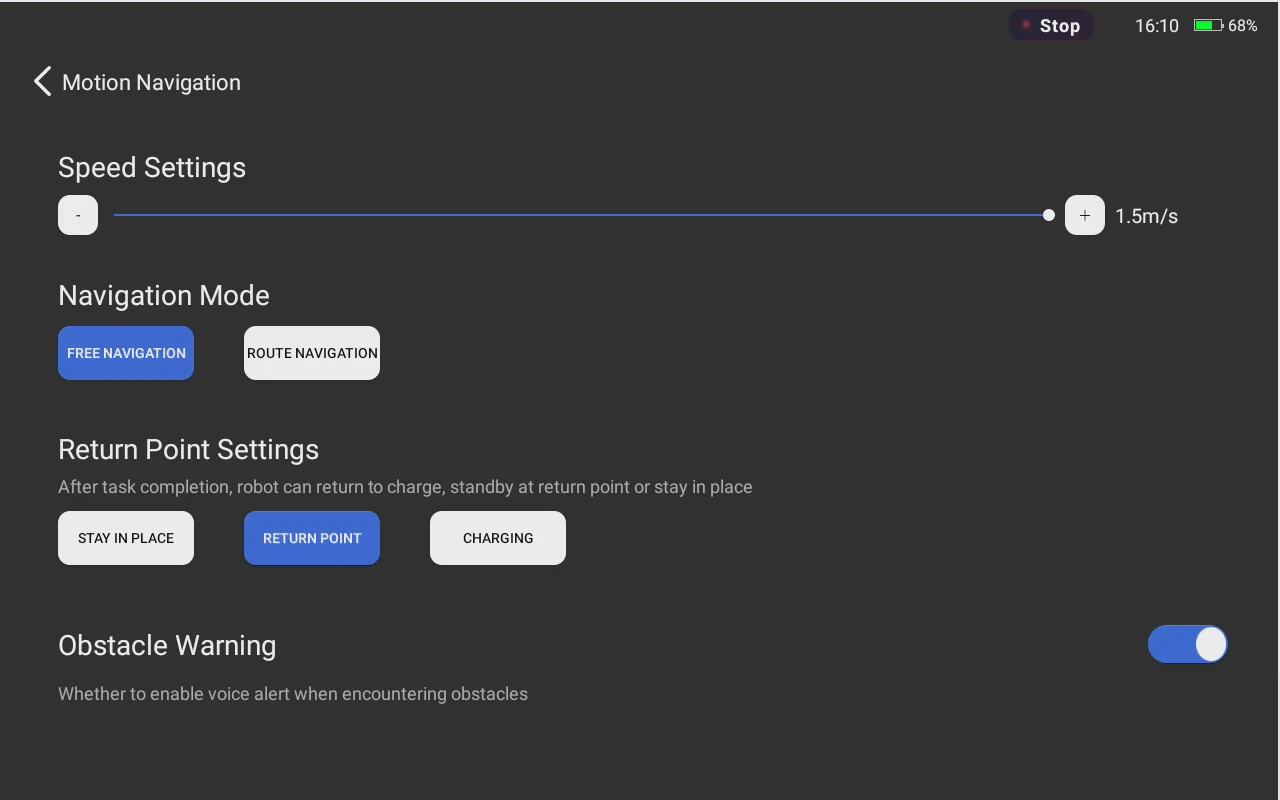

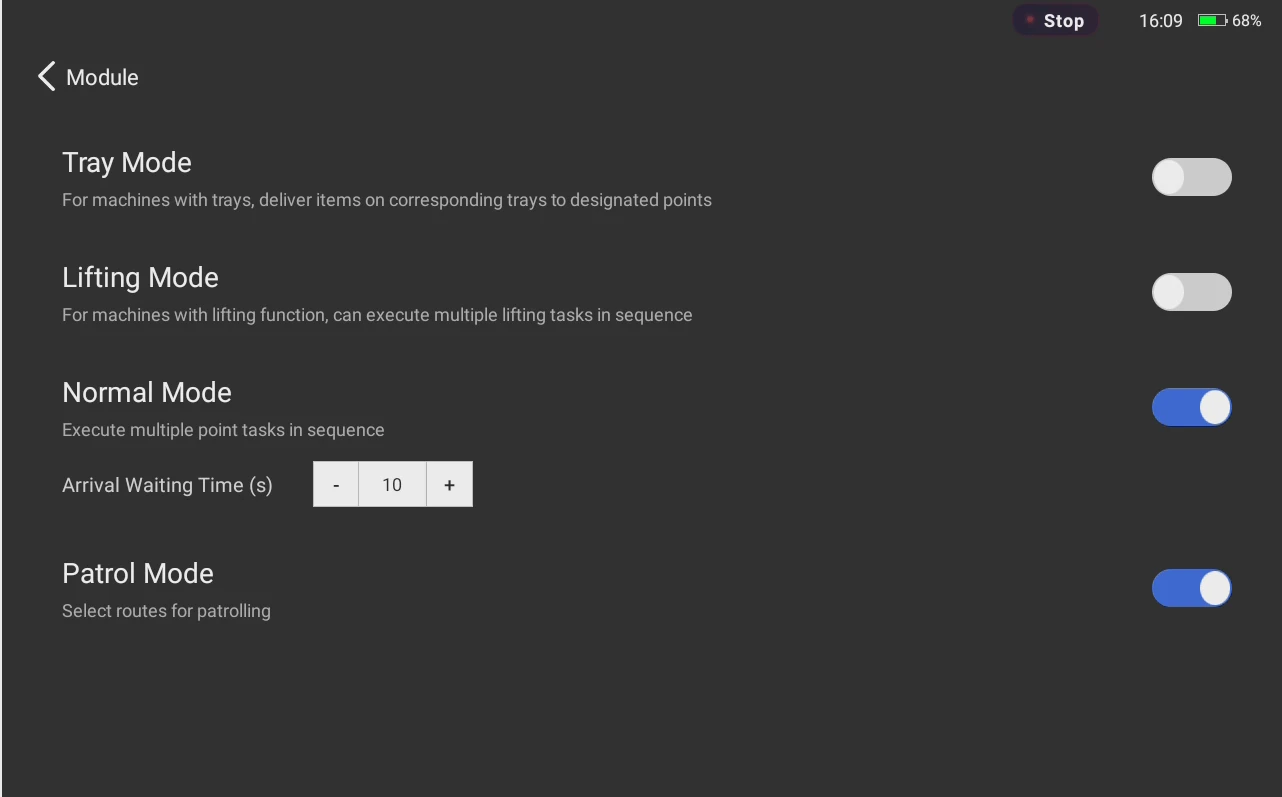

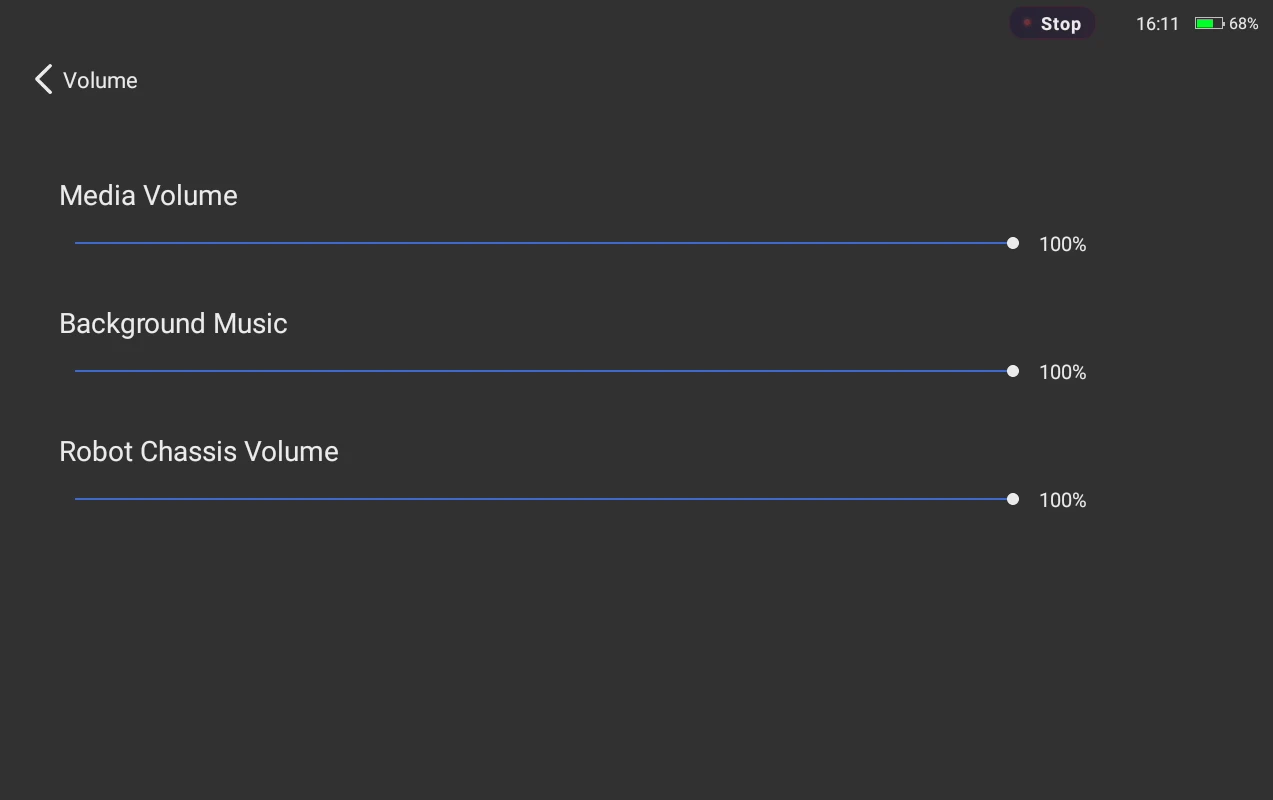

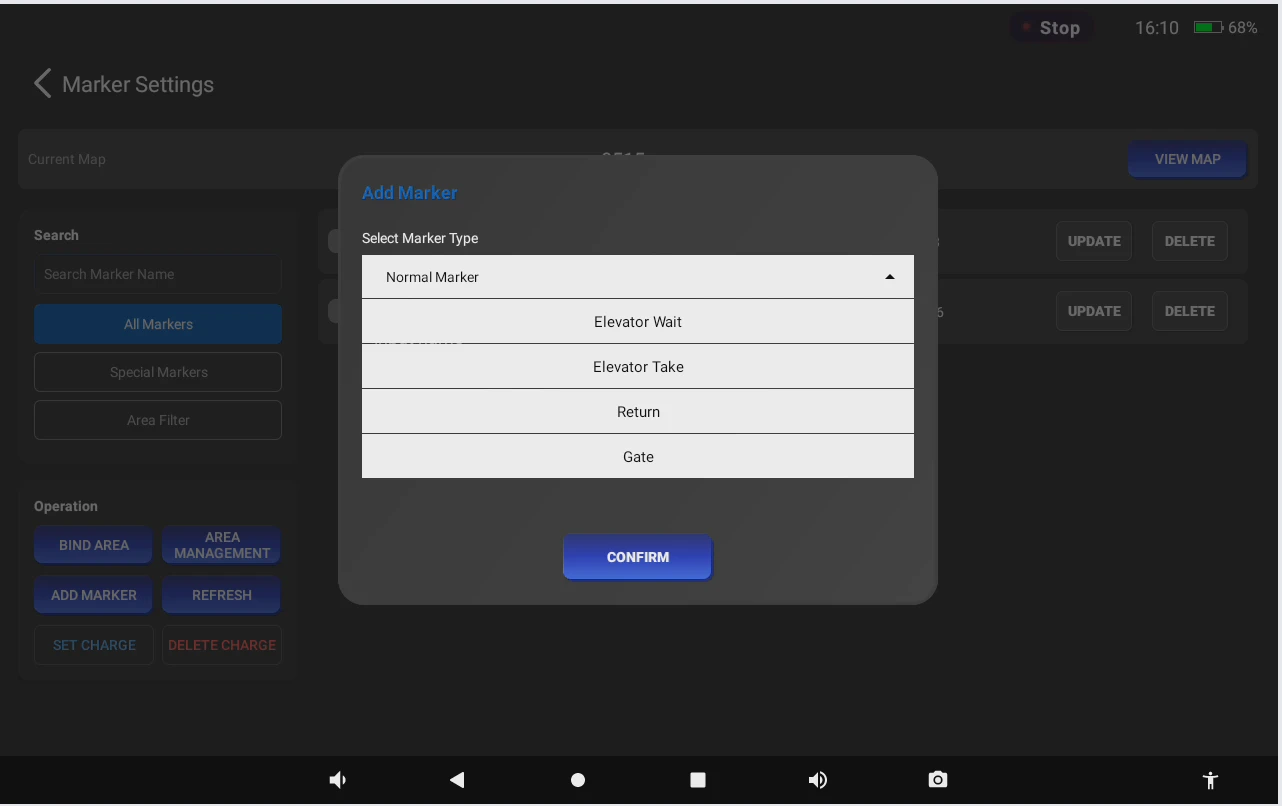

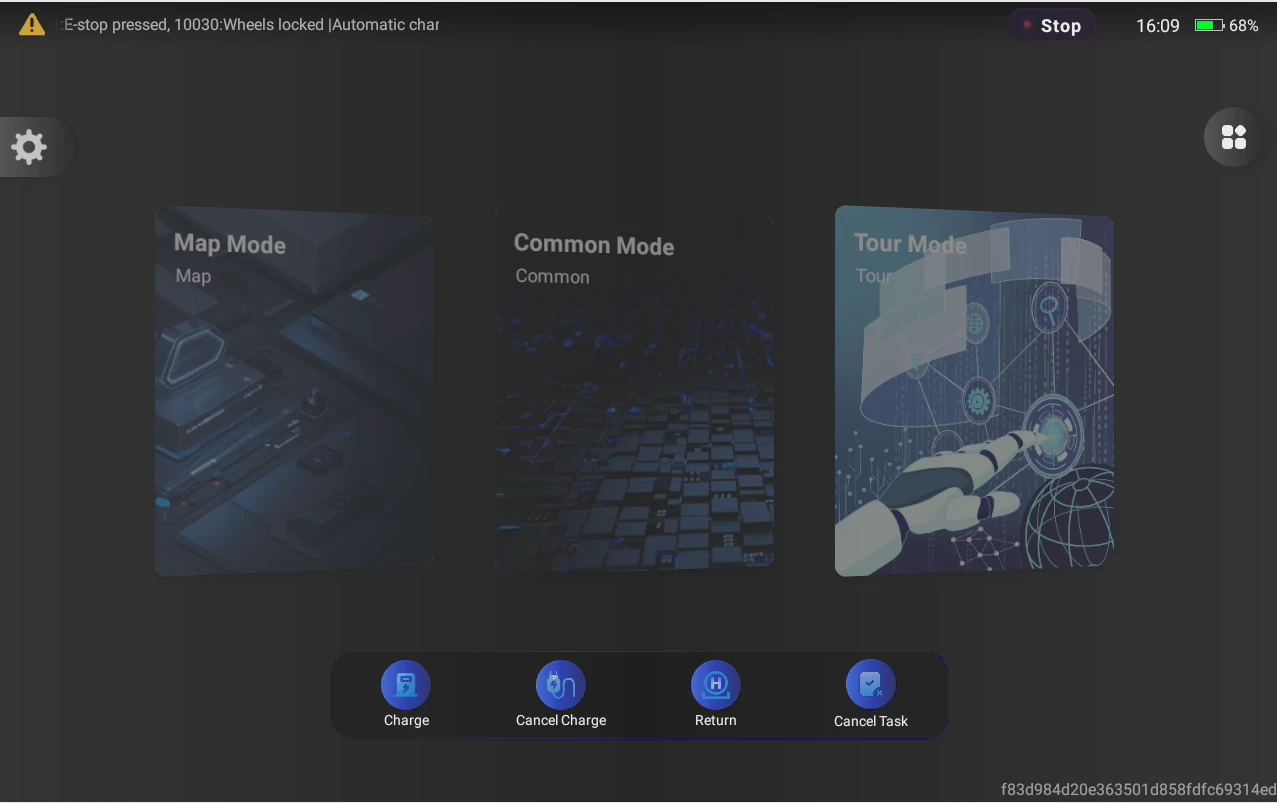

User-friendly & Simple Management system
