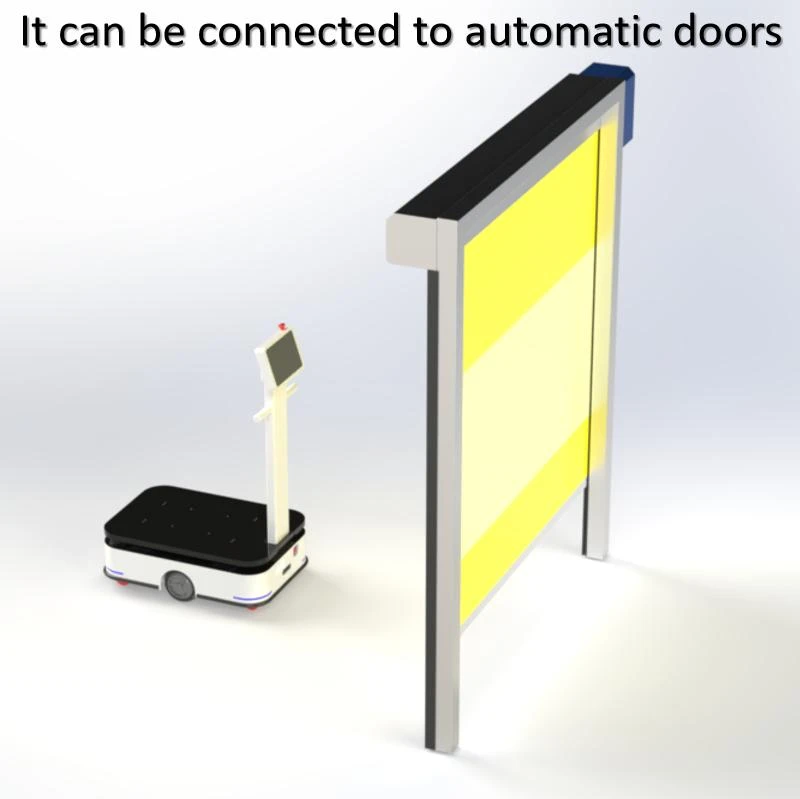

Automatic door linkage
Basic Parameters
|
Parameter |
Value |
Description |
|
Dimensions (L×W×H) |
800 × 540 × 1250 mm |
Overall size of the robot |
|
Lifting Height |
50 mm |
Maximum lifting stroke for cargo handling |
|
Weight |
100 kg |
Net weight of the robot itself |
|
Rated Load Capacity |
300 kg |
Maximum payload the robot can carry |
|
Navigation Method |
SLAM |
Simultaneous Localization and Mapping for autonomous navigation |
Battery Performance
|
Parameter |
Value |
Description |
|
Battery Type |
LiFePO4 (Lithium Iron Phosphate) |
High-safety, long-cycle battery |
|
Rated Voltage |
48 V |
System operating voltage |
|
Charge Cycle Life |
1500 cycles |
Number of charge/ discharge cycles before capacity degradation |
|
Runtime |
8 hours |
Continuous working time on a full charge |
|
Charging Time |
≤ 1.5 hours |
Time required to fully charge the battery |
Q&A
Q1: Will the robot collide with people in workshops where staff move around frequently?

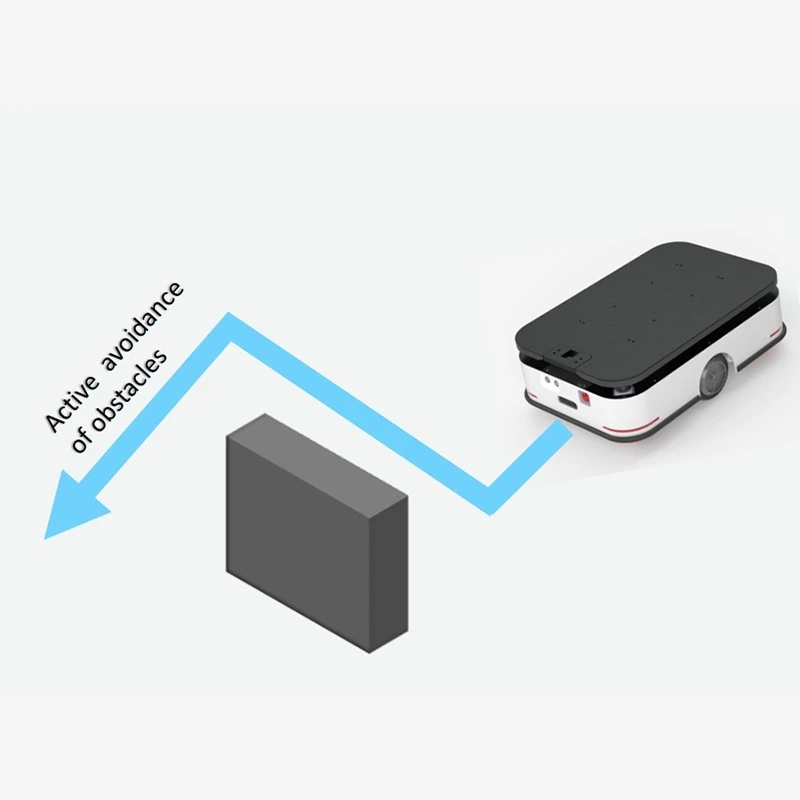

A: No. Equipped with dual LiDAR and contact anti-collision sensors, the robot slows down in advance at a long distance and stops immediately when getting close. The audible and visual alarm works all the time. It can also bypass pedestrians automatically, which is fully adapted to human-robot mixed environments.
Q2: Does goods fall easily when the robot goes over slopes and bumps?
A: No. The two-stage floating chassis is optimized for slopes and uneven ground. Besides, the robot reduces speed automatically under full load to keep stable driving posture and prevent cargo from tipping over.
Q3: Is the battery safe after being used for a long time?
A: It is completely safe. We adopt lithium iron phosphate battery with excellent safety performance and comprehensive power protection. It features long service life and reliable operation for long-term use.
Why use a AMR?
Ideal for small and medium-sized warehouses, line-side warehouses and forward warehouses, the AMR solves common pain points such as low efficiency and labor shortage in manual sorting and cargo circulation.
User-friendly & Simple Management system
