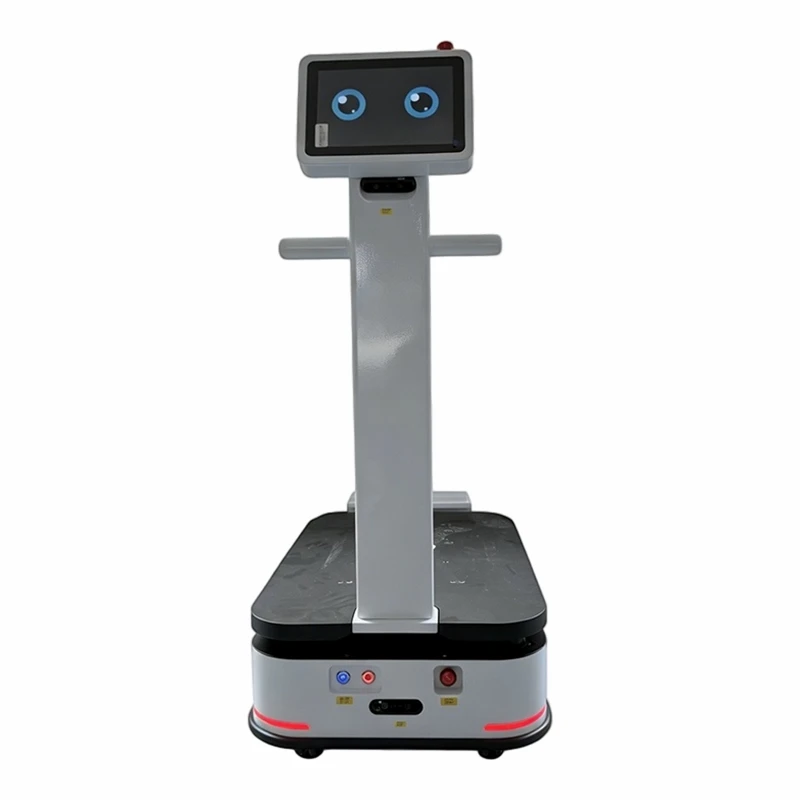

Warehouse handling robert 300KG is designed for medium-load transportation. It is widely applied in smart warehouses and industrial factories. It handles cargo circulation in finished goods warehouses, line-side warehouses and raw material storage areas. It also serves workshops of electronics, auto parts, machinery and light industry, transporting materials, bins and pallets between workstations. With reliable performance, it works steadily in human-robot mixed areas and narrow aisles, and supports cross-floor delivery as well.

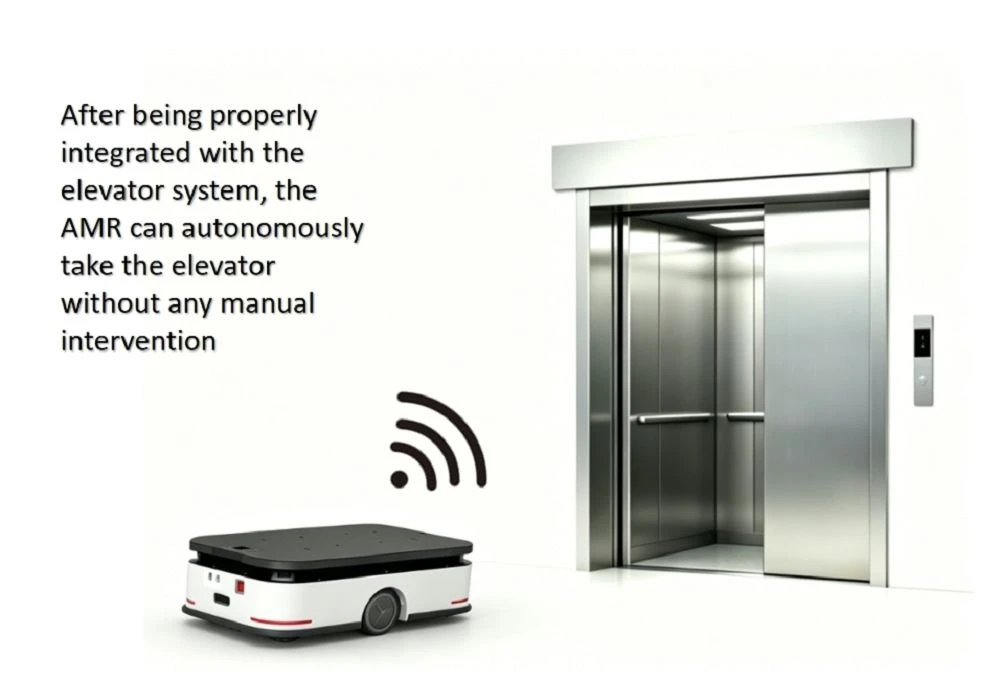

product-1000-679

Automatic door linkage

Basic Parameters

Parameter	Value	Description
Dimensions (L×W×H)	800 × 540 × 1250 mm	Overall size of the robot
Lifting Height	50 mm	Maximum lifting stroke for cargo handling
Weight	100 kg	Net weight of the robot itself
Rated Load Capacity	300 kg	Maximum payload the robot can carry
Navigation Method	SLAM	Simultaneous Localization and Mapping for autonomous navigation

Battery Performance

Parameter	Value	Description
Battery Type	LiFePO4 (Lithium Iron Phosphate)	High-safety, long-cycle battery
Rated Voltage	48 V	System operating voltage
Charge Cycle Life	1500 cycles	Number of charge/ discharge cycles before capacity degradation
Runtime	8 hours	Continuous working time on a full charge
Charging Time	≤ 1.5 hours	Time required to fully charge the battery

Q&A

Q1: Is ground modification or magnetic strip laying required for robot deployment?

A: No. Adopting laser SLAM navigation, no magnetic strips, QR tracks or positioning markers are needed. Only quick on-site mapping is required before operation.

Q2: Is the battery safe after being used for a long time?

A: It is completely safe. We adopt lithium iron phosphate battery with excellent safety performance and comprehensive power protection. It features long service life and reliable operation for long-term use.

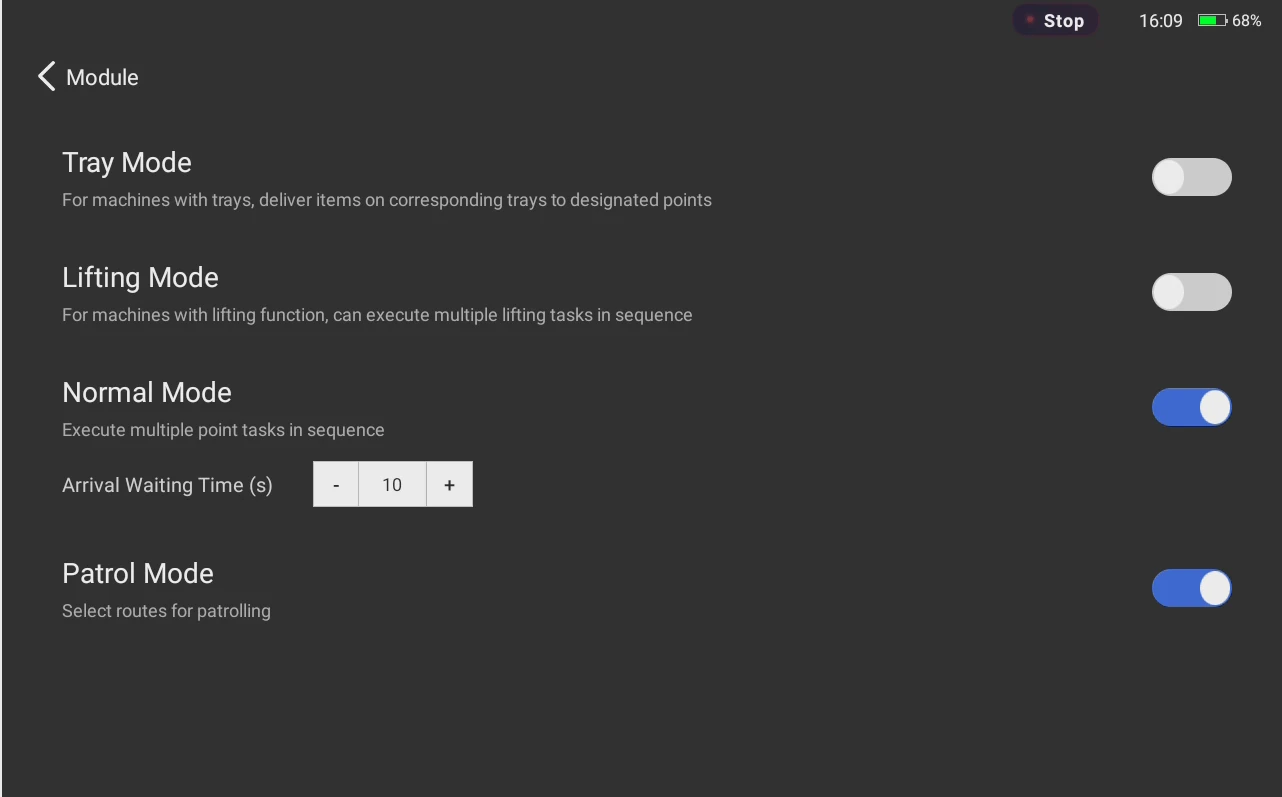

Q3: What handling modes does the robot support?

A: It supports single-point delivery, multi-point loading & delivery, trolley/rack towing, lifting transportation and other working modes.

Q4: Does manual charging become necessary when power runs low?

A: Equipped with auto-charging function, the robot automatically docks with chargers at low battery for nonstop 24/7 operation.

Q5: Can it connect with customers' existing WMS?

A: Custom interfaces are optional for seamless WMS/WCS connection to realize digital warehouse management.

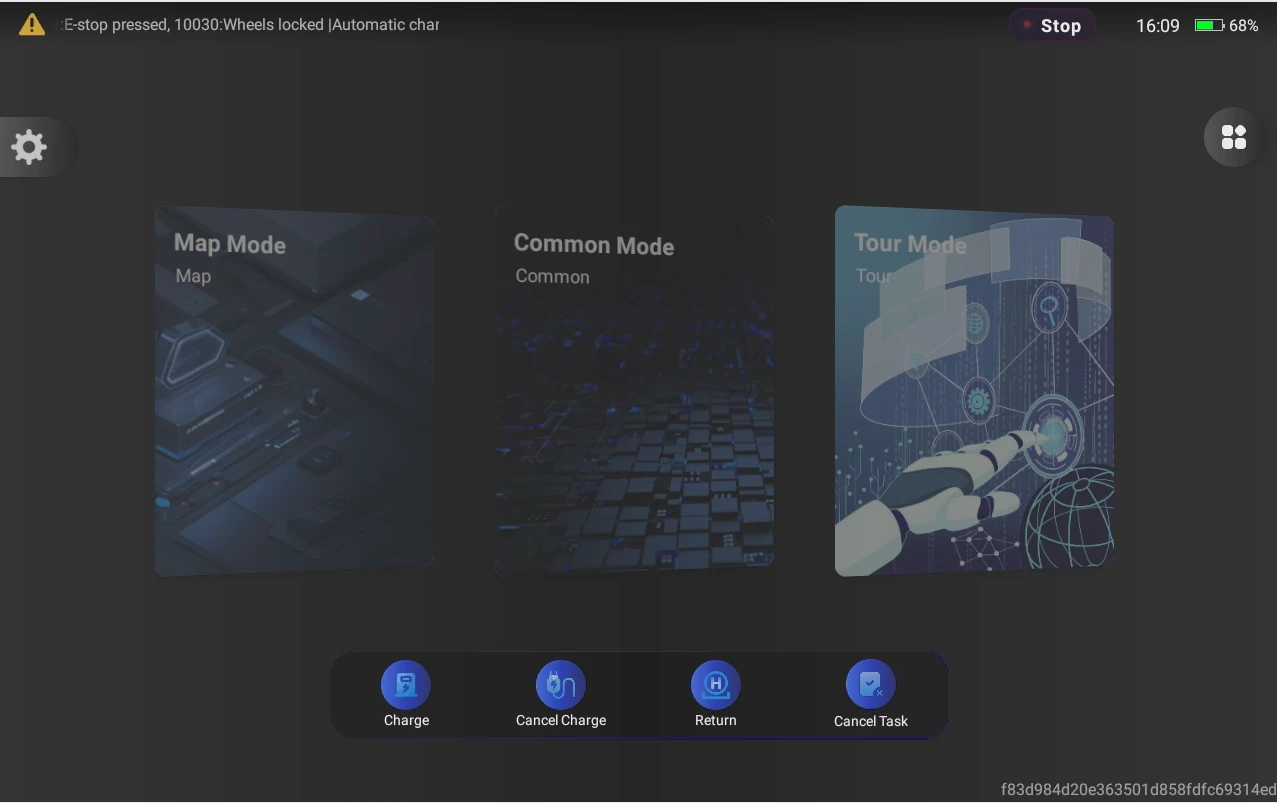

product-1277-803
