Basic Parameters
|
Parameter |
Value |
Description |
|
Dimensions (L×W×H) |
800 × 540 × 1250 mm |
Overall size of the robot |
|
Lifting Height |
50 mm |
Maximum lifting stroke for cargo handling |
|
Weight |
100 kg |
Net weight of the robot itself |
|
Rated Load Capacity |
300 kg |
Maximum payload the robot can carry |
|
Navigation Method |
SLAM |
Simultaneous Localization and Mapping for autonomous navigation |
Battery Performance
|
Parameter |
Value |
Description |
|
Battery Type |
LiFePO4 (Lithium Iron Phosphate) |
High-safety, long-cycle battery |
|
Rated Voltage |
48 V |
System operating voltage |
|
Charge Cycle Life |
1500 cycles |
Number of charge/ discharge cycles before capacity degradation |
|
Runtime |
8 hours |
Continuous working time on a full charge |
|
Charging Time |
≤ 1.5 hours |
Time required to fully charge the battery |
Application Scenarios
Suitable for raw material feeding, semi-finished product turnover and finished goods outbound in electronics, auto parts, food, e-commerce and small & medium-sized warehouses; available for rack, tote and pallet transportation in narrow-aisle storage areas.
Product Advantage:
- Cut manpower cost by replacing manual handling;
- Improve warehouse throughput with round-the-clock automatic operation;
- Reduce cargo damage via stable automatic lifting & transporting;
- Flexible deployment without ground reconstruction.
Manual remote control mode
The standard charging station
Customizable rack
Automatic Obstacle Avoidance
Laser SLAM Navigation

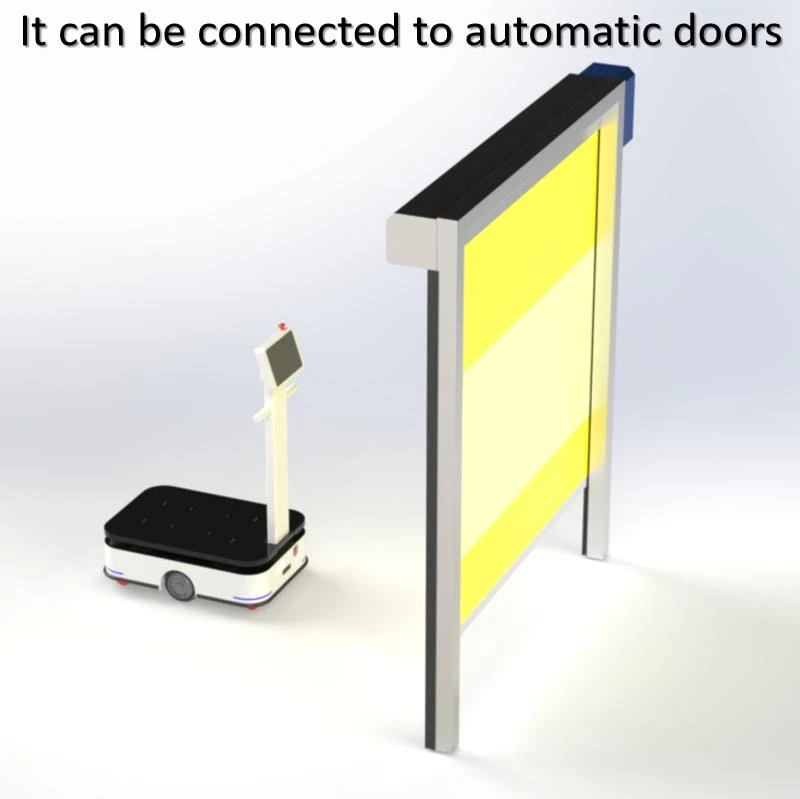

Elevator linkage
