Why choose us?
We have mature capabilities in software and hardware integration & project execution to realize full automation for warehouse handling, accurate picking and fast sorting. Backed by self-developed IWMS and RCS intelligent dispatching systems plus proprietary AI algorithms, our robots run under mixed working modes and achieve seamless linkage with AS/RS, conveyor lines, cargo elevators and other automated warehousing equipment.
Optional Functions
1. Automatic door linkage control
2. Audible & visual warning
3. WMS & WCS system docking
4. QR code & barcode scanning

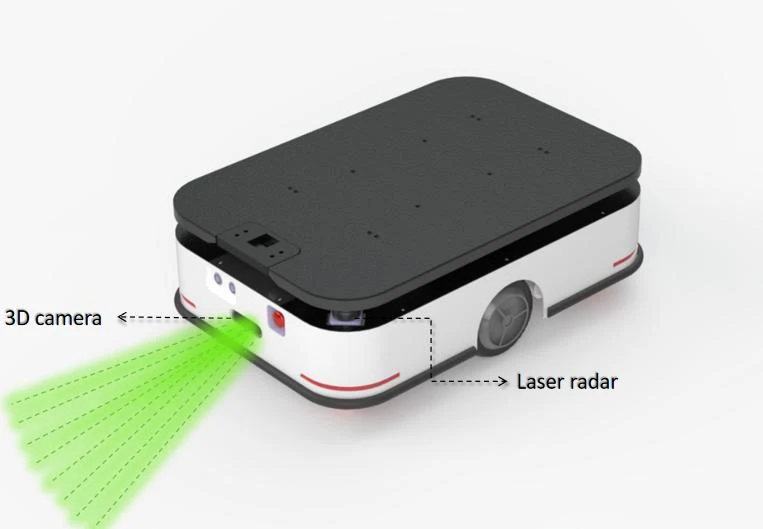

5. Upgraded laser anti-collision protection
6. Manual remote control mode
Battery performance
|
Parameter |
Value |
Description |
|
Dimensions (L×W×H) |
800 × 540 × 280 mm |
Overall size of the robot |
|
Lifting Height |
50 mm |
Maximum lifting stroke for cargo handling |
|
Weight |
80 kg |
Net weight of the robot itself |
|
Rated Load Capacity |
200 kg |
Maximum payload the robot can carry |
|
Navigation Method |
SLAM |
SLAM for autonomous navigation |
Basic Parameters
|
Parameter |
Value |
Description |
|
Battery Type |
LiFePO4 (Lithium Iron Phosphate) |
High-safety, long-cycle battery |
|
Rated Voltage |
48 V |
System operating voltage |
|
Charge Cycle Life |
1500 cycles |
Number of charge/ discharge cycles before capacity degradation |
|
Runtime (Rated Condition) |
8 hours |
Continuous working time on a full charge |
|
Charging Time |
≤ 1.5 hours |
Time required to fully charge the battery |
FAQ
Q1: Is ground modification or magnetic strip laying required for AMR robot 200KG deployment?

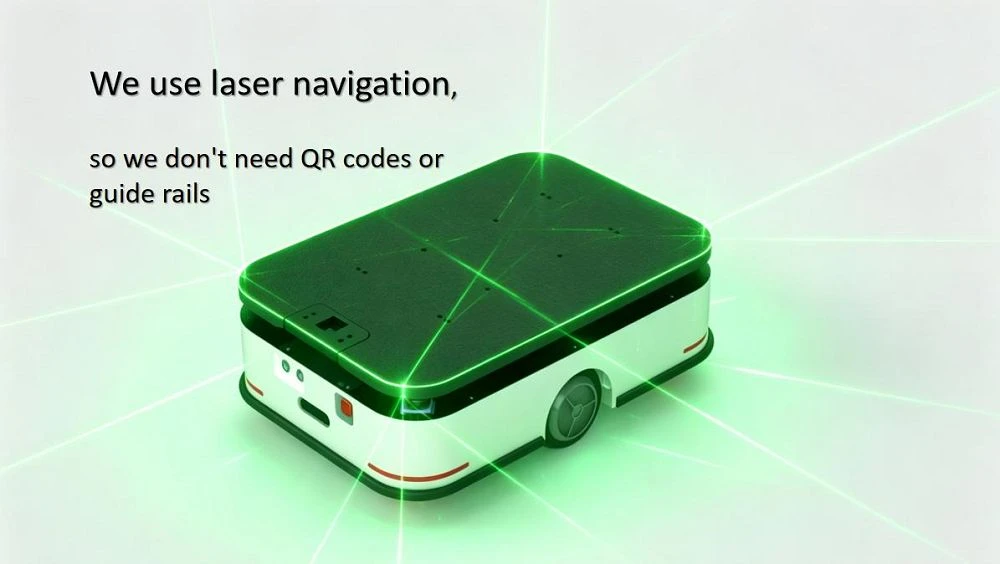

A: No. Adopting laser SLAM navigation, no magnetic strips, QR tracks or positioning markers are needed. Only quick on-site mapping is required before operation.

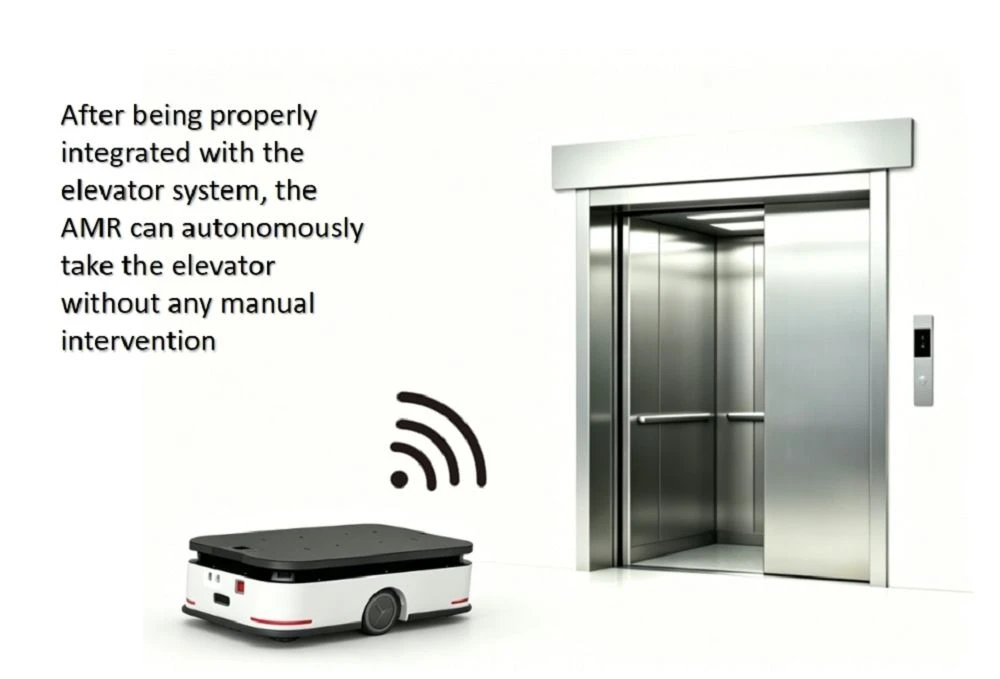

Q2: Can the robot link up with elevators and factory automatic doors?
A: Optional linkage with elevators and automatic doors is available to realize fully unmanned cross-floor transportation.
Q3: What handling modes does the robot support?

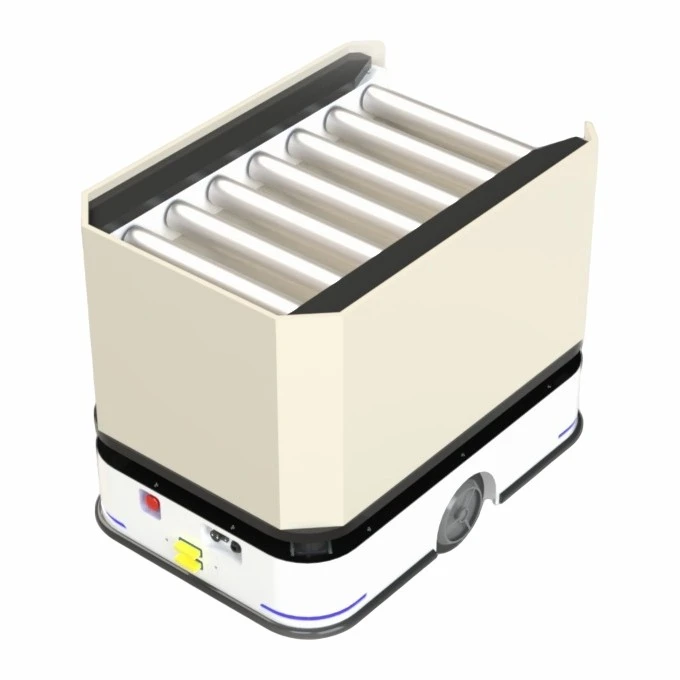

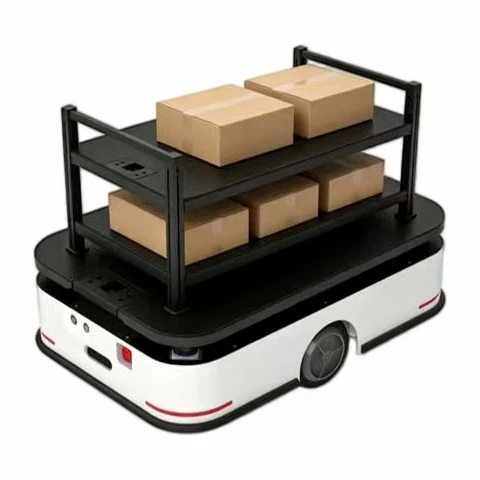

A: It supports single-point delivery, multi-point loading & delivery, trolley/rack towing, lifting transportation and other working modes.
Q4: Does manual charging become necessary when power runs low?

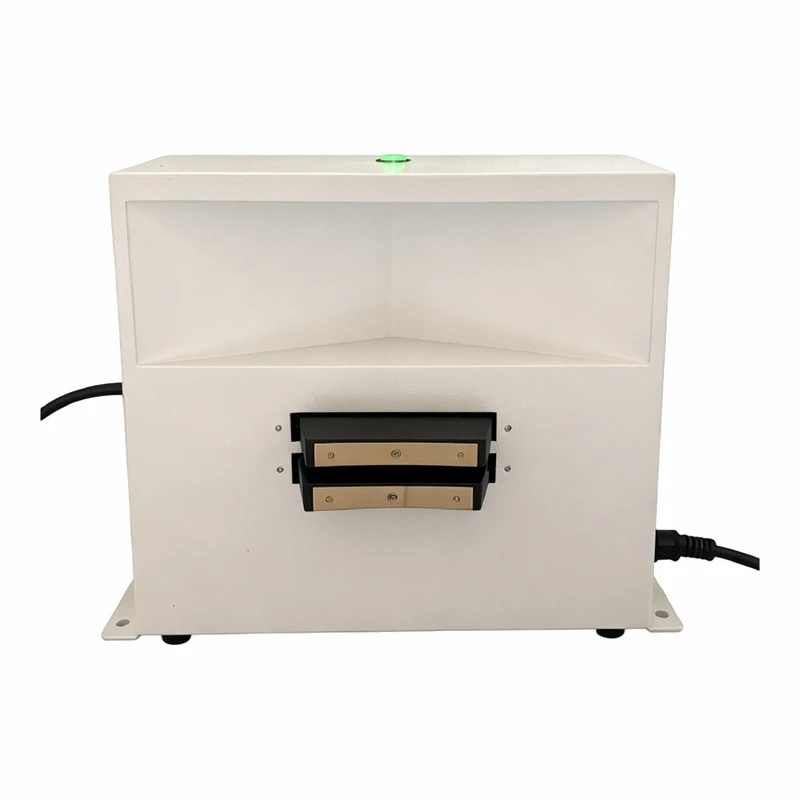

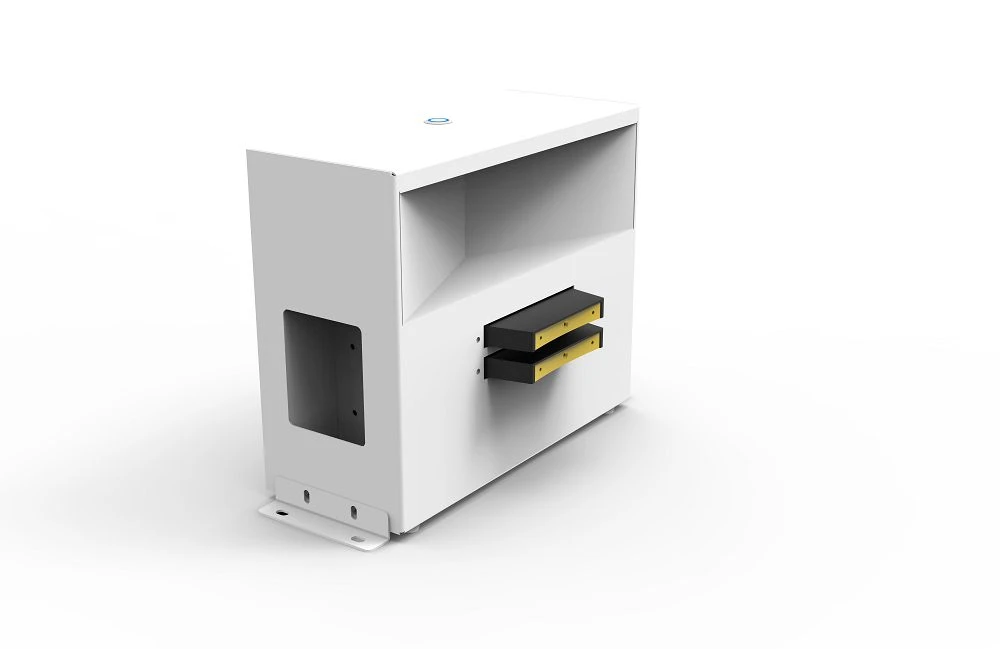

A: Equipped with auto-charging function, the robot automatically docks with chargers at low battery for nonstop 24/7 operation.
Q5: Can it connect with customers' existing WMS?
A: Custom interfaces are optional for seamless WMS/WCS connection to realize digital warehouse management.
