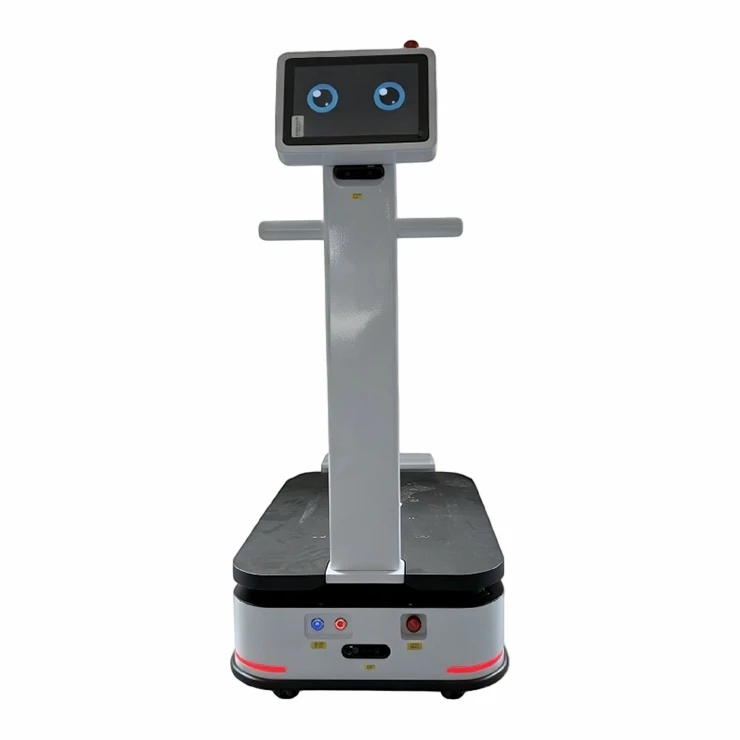

This Intelligent Autonomous Mobile Robot 200KG is built with autonomous SLAM navigation, smart obstacle avoidance, steady load lifting and automatic charging functions. It delivers reliable round-the-clock unmanned material transport services to streamline warehouse and workshop logistics workflows.
Core Technical Advantages
Ultra-light Deployment: No ground modification or auxiliary navigation markers, fast mapping and commissioning.
High Flexibility: Adapt to production layout changes by updating navigation maps only, ideal for flexible manufacturing.
High Safety: Multi-layer anti-collision system ensures safe human-robot collaboration.
Low O&M Cost: Modular hardware and mature algorithms reduce daily maintenance workload.
Wide Compatibility: Compact body and elevator linkage function suit light-load handling in 3C, logistics, medical and light industry sectors.
Perception & Obstacle Avoidance
Current AMRs adopt a multi-sensor fusion protection system, suitable for workspaces with mixed humans and robots.
Hardware Configuration: Standard equipped with front & rear LiDAR, piezoelectric contact bumpers, audible & visual alarms and emergency stop buttons, providing dual protection of long-distance pre-warning and short-distance physical collision prevention. Premium models add 3D vision and 4D millimeter-wave radar to identify low obstacles and suspended objects.
Algorithm Performance: Dynamic obstacle avoidance algorithms enable the robot to bypass pedestrians and temporary goods automatically, with the recognition accuracy of dynamic obstacles over 99.5%. It can optimize driving paths in narrow aisles to guarantee efficiency and safety.
Manual remote control mode
Basic Parameters
|
Parameter |
Value |
Description |
|
Dimensions (L×W×H) |
800 × 540 × 1250 mm |
Overall size of the robot |
|
Lifting Height |
50 mm |
Maximum lifting stroke for cargo handling |
|
Weight |
80 kg |
Net weight of the robot itself |
|
Rated Load Capacity |
200 kg |
Maximum payload the robot can carry |
|
Navigation Method |
SLAM |
SLAM for autonomous navigation |
The standard charging station

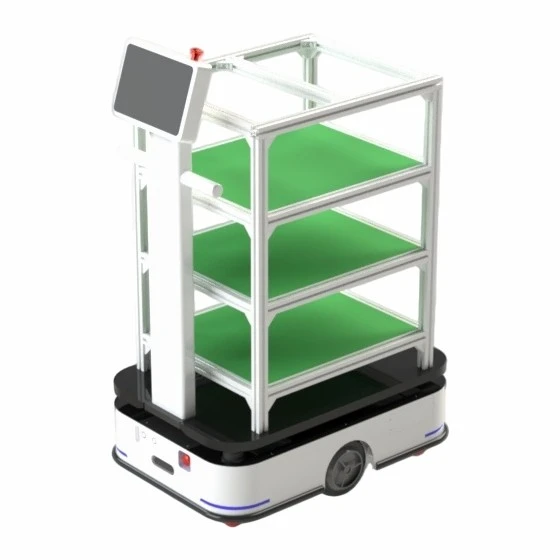

Customizable rack
Automatic Obstacle Avoidance
Laser SLAM Navigation

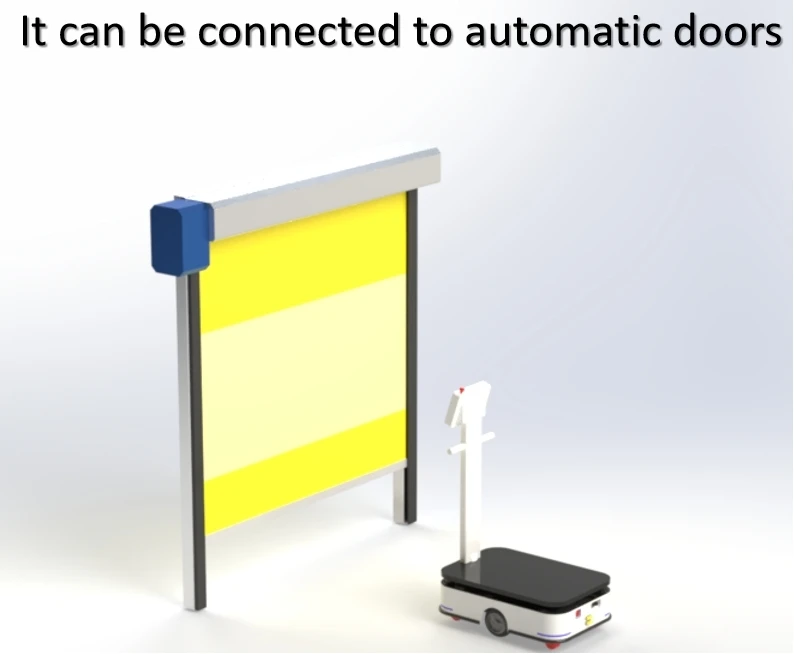

Elevator linkage
