Product advantage
- Reduce labor costs and solve recruitment troubles permanently.
- Work smoothly in narrow aisles to maximize warehouse space utilization.
- Accurate transportation cuts picking mistakes and simplifies inventory.
- Stable movement effectively reduces cargo collision damage.
- 24/7 nonstop operation to balance peak & off-season production.
- Automatic data recording for digital refined warehouse management.
- Standardized operation eliminates manual handling safety risks.

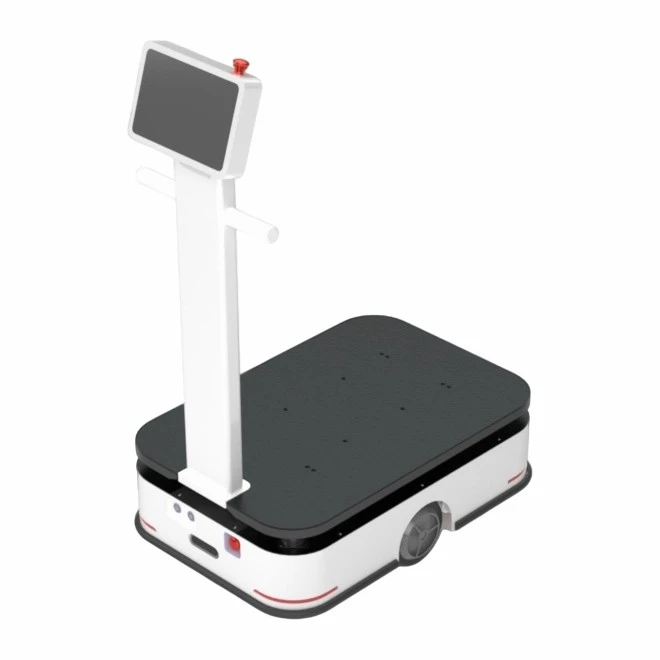

Main Functions of Material Handling Robot 100KG
- Autonomous Navigation
- Docking with Racks & Material Trolleys
- Lifting & Handling(Optional Functions)
- Flatbed Cargo Transportation

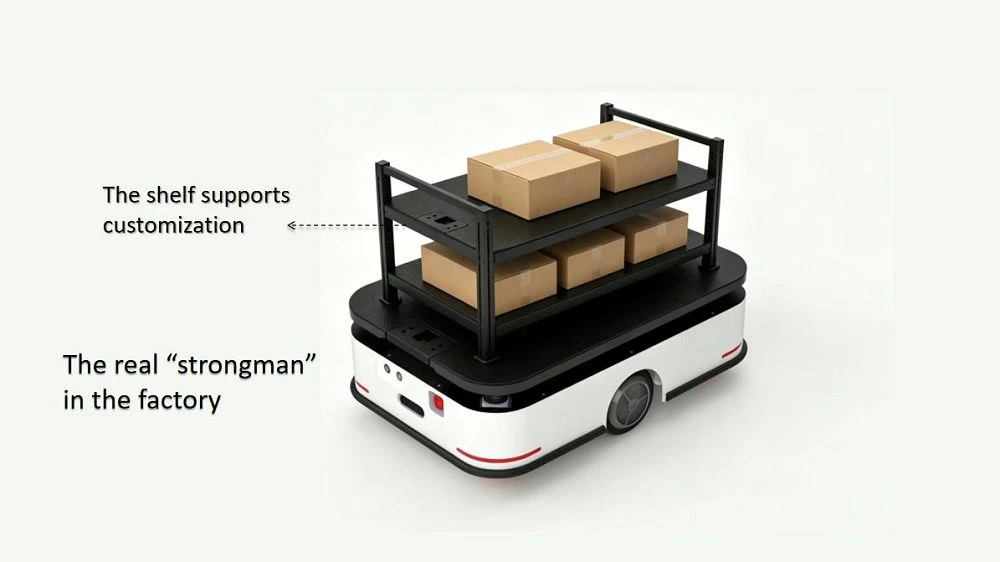

- Rack & Trolley Transport
- Single-point Delivery
- Multi-point Delivery
- Multi-point Goods Collection

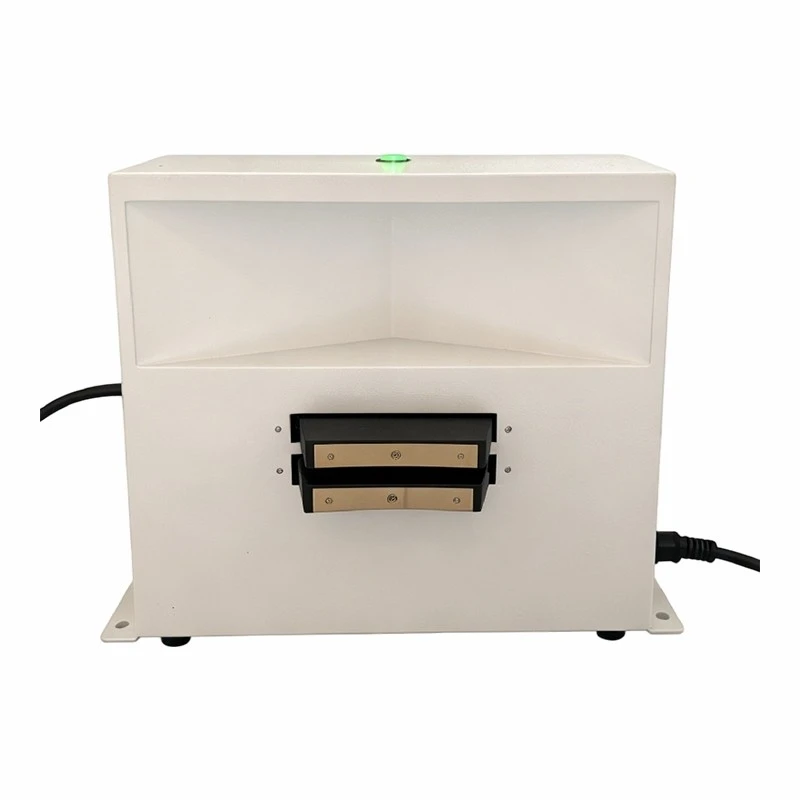

- Automatic Charging
After-sales Service
- Whole machine warranty & original spare parts supply
- Remote online troubleshooting & instant remote adjustment
- Free software upgrade and function optimization in later use
- Free operation training for warehouse staff
|
Parameter |
Value |
Description |
|
Dimensions (L×W×H) |
800 × 540 × 1250 mm |
Overall size of the robot |
|
Lifting Height |
0 mm |
Customizable |
|
Weight |
50 kg |
Net weight of the robot itself |
|
Rated Load Capacity |
100 kg |
Maximum payload the robot can carry |
|
Navigation Method |

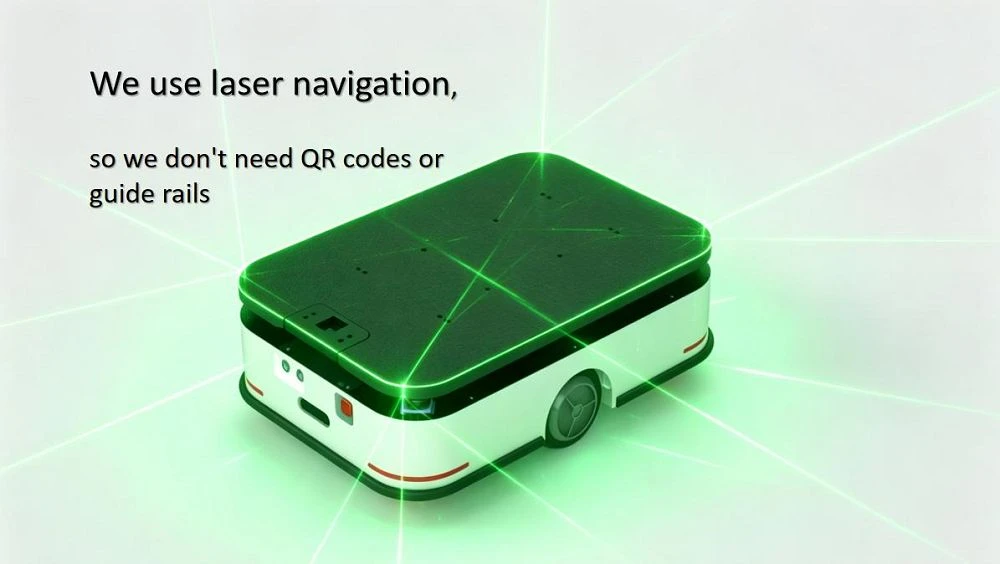

SLAM |
SLAM for autonomous navigation |
Basic Parameters
|
Feature |
Status |
Description |
|

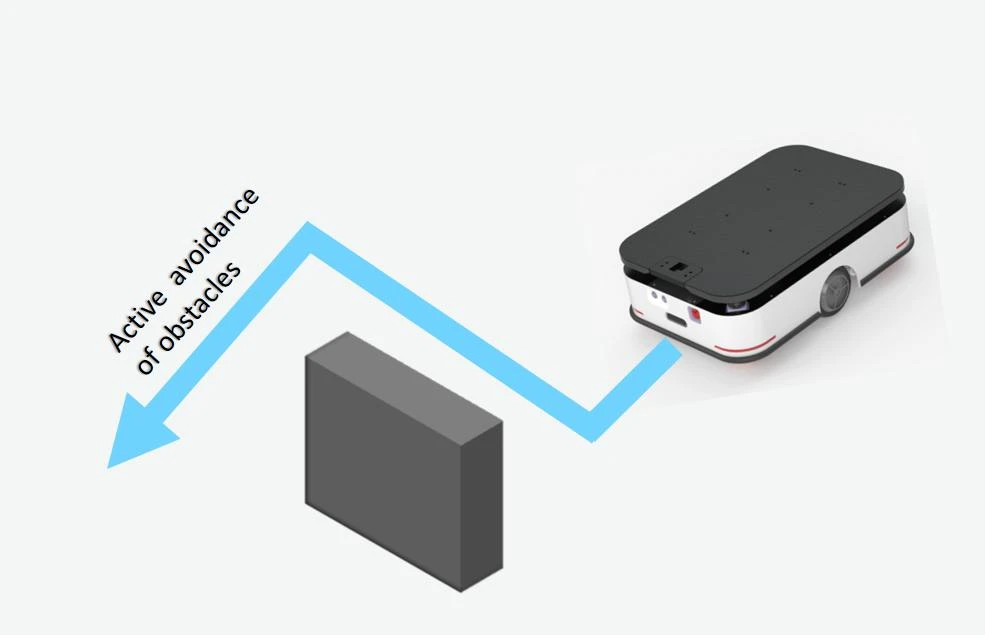

Laser Obstacle Avoidance |
✅ |
Front and rear laser sensors for dynamic obstacle detection |
|
Bumper Detection |
✅ |
Front and rear collision strips for physical impact protection |
|
E-Stop Button |
✅ |
Front and rear emergency stop buttons for immediate halt |
|
Audio Alarm |
✅ |
Audible warning for status changes or potential hazards |
Battery Performance
|
Parameter |
Value |
Description |
|
Battery Type |
LiFePO4 (Lithium Iron Phosphate) |
High-safety, long-cycle battery |
|
Rated Voltage |
48 V |
System operating voltage |
|
Charge Cycle Life |
1500 cycles |
Number of charge/ discharge cycles before capacity degradation |
|
Runtime (Rated Condition) |
8 hours |
Continuous working time on a full charge |
|
Charging Time |
≤ 1.5 hours |
Time required to fully charge the battery |
Safety & Protection
