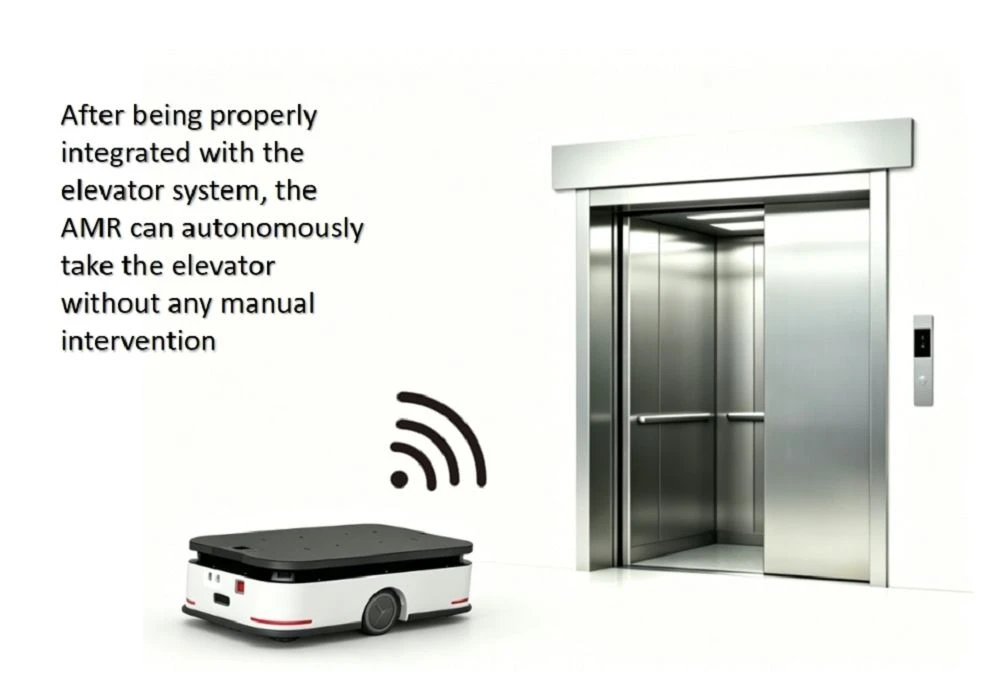

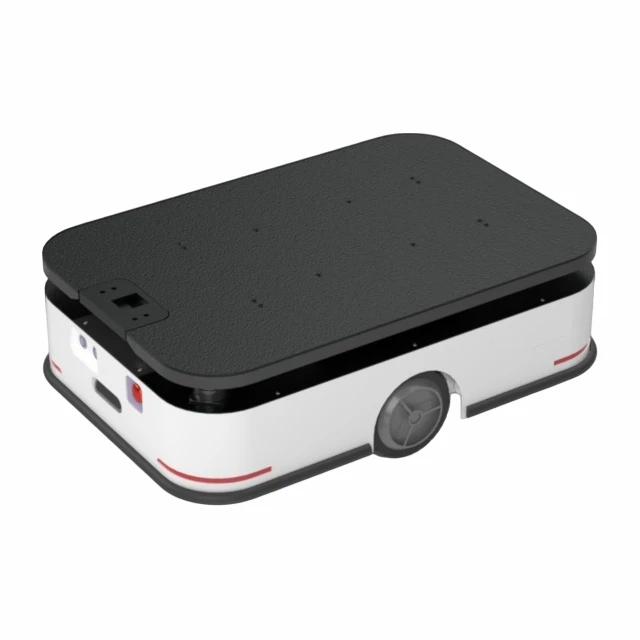

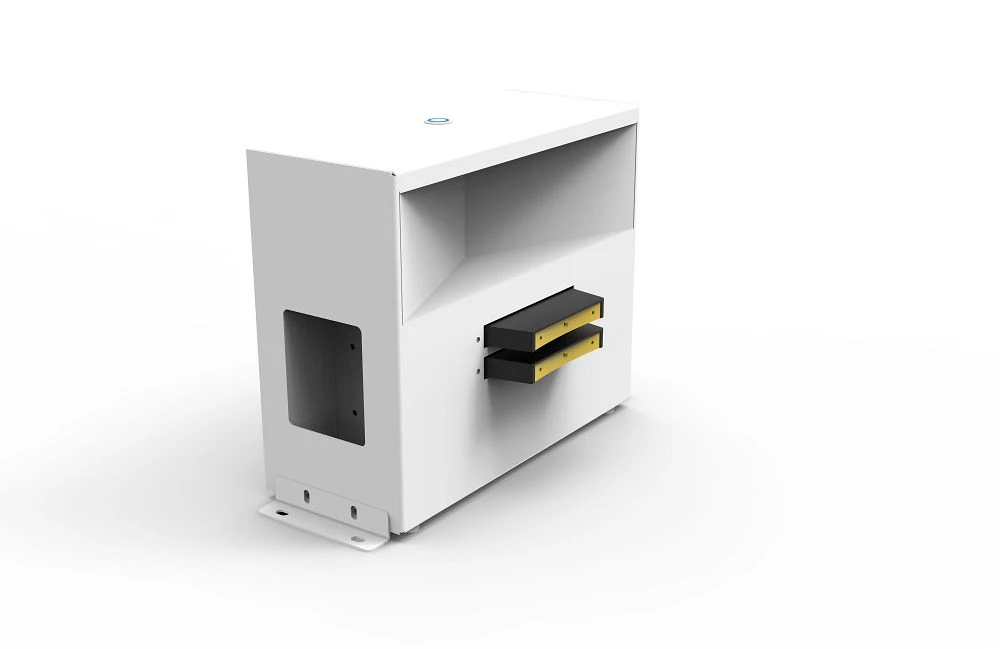

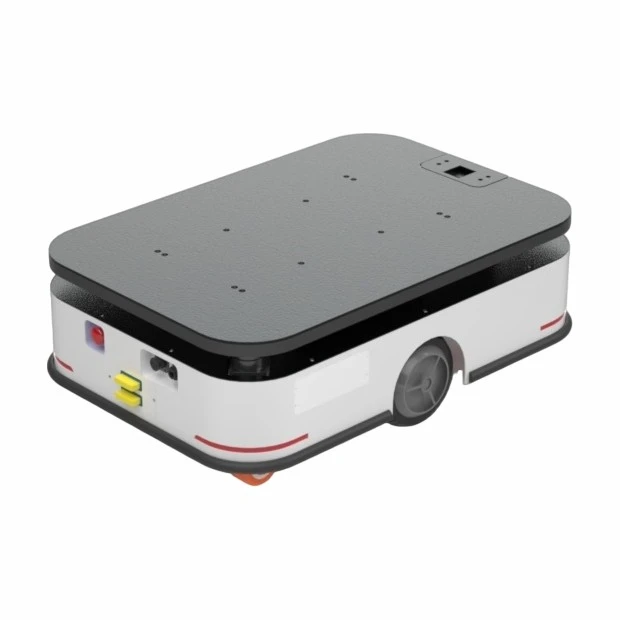

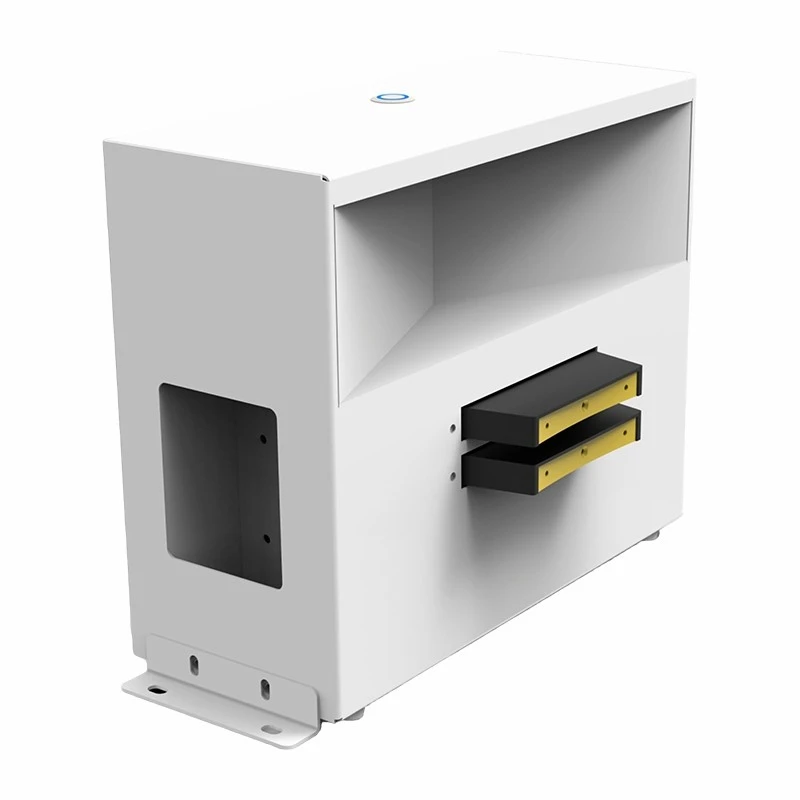

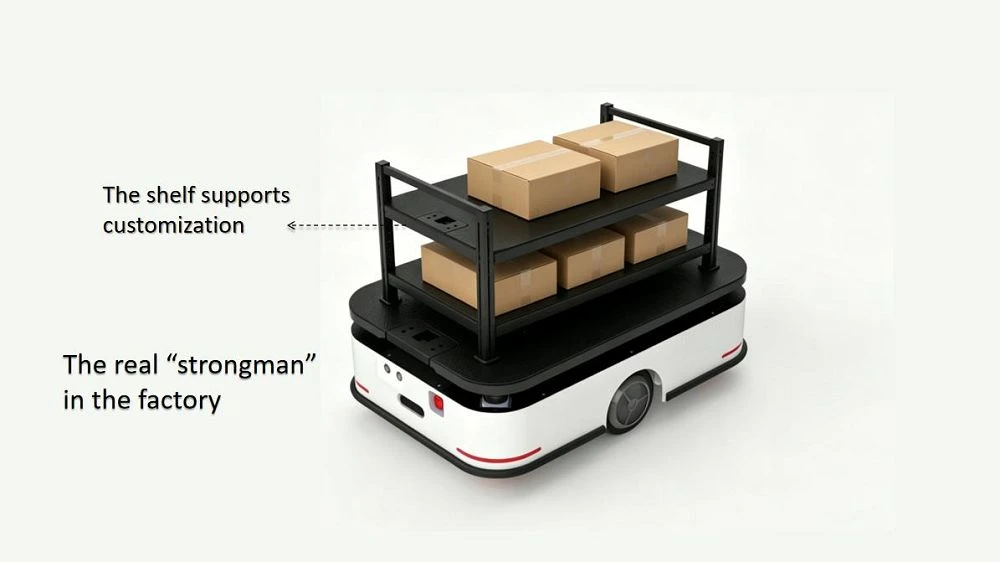

Our Handling Robot integrates autonomous navigation, obstacle avoidance, efficient hauling and auto-charging. Different from traditional AGVs needing complicated wiring and site construction, it enables quick lightweight deployment without servers, LAN or positioning beacons. Material Handling Industrial Robot 100KG supports elevator linkage, PDA/button task calling and diverse tasks: cyclic delivery, cart towing, on-demand picking and follow-me mode. It greatly lowers deployment & labor costs and boosts warehouse benefits.
Application Scenarios

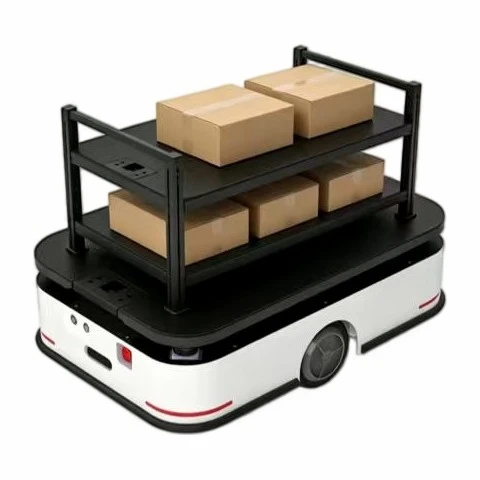

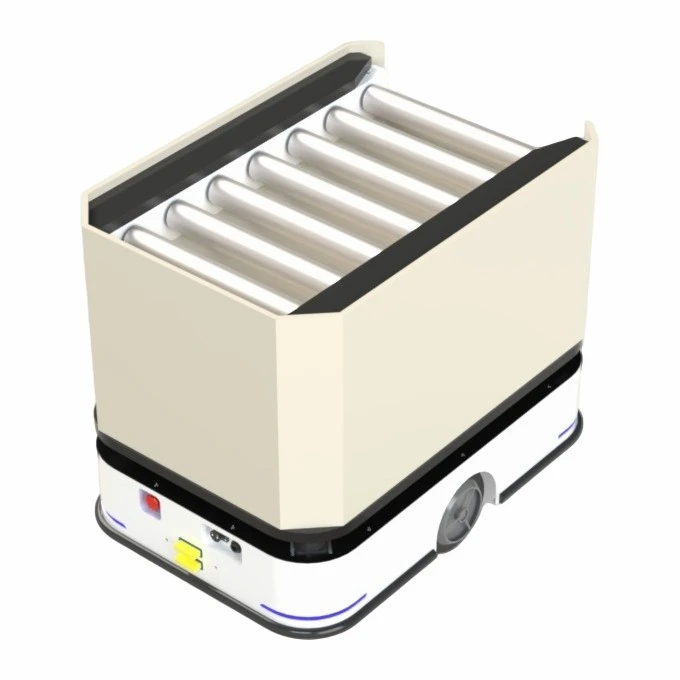

Suitable for raw material feeding, semi-finished product turnover and finished goods outbound in electronics, auto parts, food, e-commerce and small & medium-sized warehouses; available for rack, tote and pallet transportation in narrow-aisle storage areas.
Optional Functions
1. Automatic door linkage control
2. Audible & visual warning
3. WMS & WCS system docking
4. QR code & barcode scanning
5. Upgraded laser anti-collision protection
6. Manual remote control mode
|
Parameter |
Value |
Description |
|
Dimensions (L×W×H) |
800 × 540 × 280 mm |
Overall size of the robot |
|
Lifting Height |
50 mm |
Maximum lifting stroke for cargo handling |
|
Weight |
50 kg |
Net weight of the robot itself |
|
Rated Load Capacity |
100 kg |
Maximum payload the robot can carry |
|

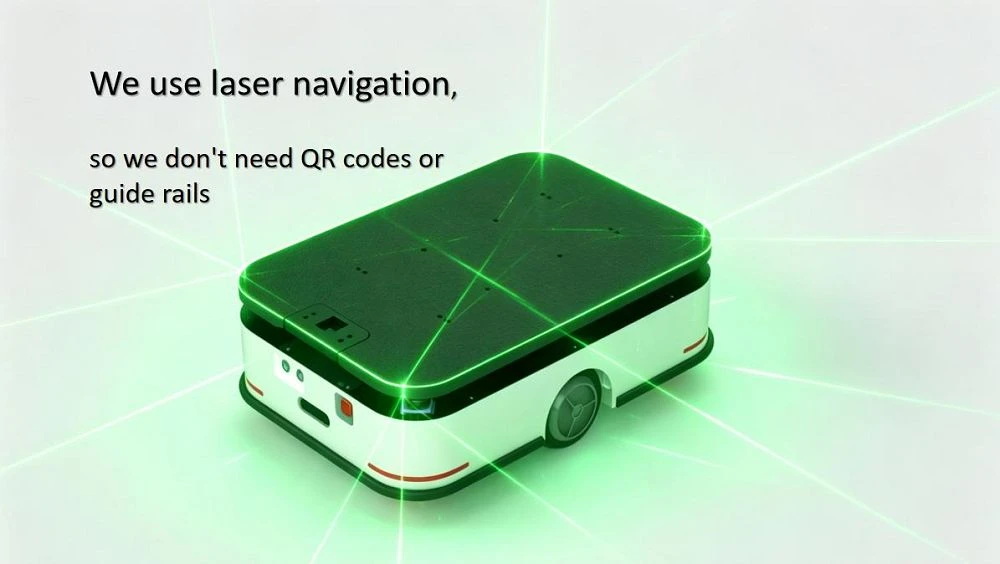

Navigation Method |
SLAM |
SLAM for autonomous navigation |
Basic Parameters
|
Feature |
Status |
Description |
|

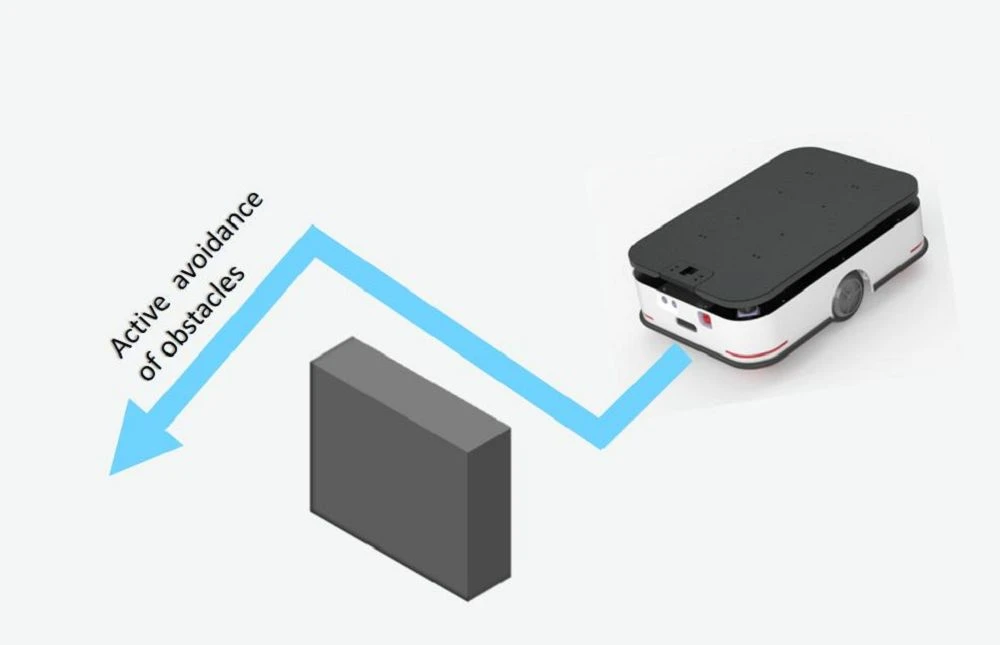

Laser Obstacle Avoidance |
✅ |
Front and rear laser sensors for dynamic obstacle detection |
|
Bumper Detection |
✅ |
Front and rear collision strips for physical impact protection |
|
E-Stop Button |
✅ |
Front and rear emergency stop buttons for immediate halt |
|
Audio Alarm |
✅ |
Audible warning for status changes or potential hazards |
Battery Performance
|
Parameter |
Value |
Description |
|
Battery Type |
LiFePO4 (Lithium Iron Phosphate) |
High-safety, long-cycle battery |
|
Rated Voltage |
48 V |
System operating voltage |
|
Charge Cycle Life |
1500 cycles |
Number of charge/ discharge cycles before capacity degradation |
|
Runtime (Rated Condition) |
8 hours |
Continuous working time on a full charge |
|
Charging Time |
≤ 1.5 hours |
Time required to fully charge the battery |
Safety & Protection
