Core Angle

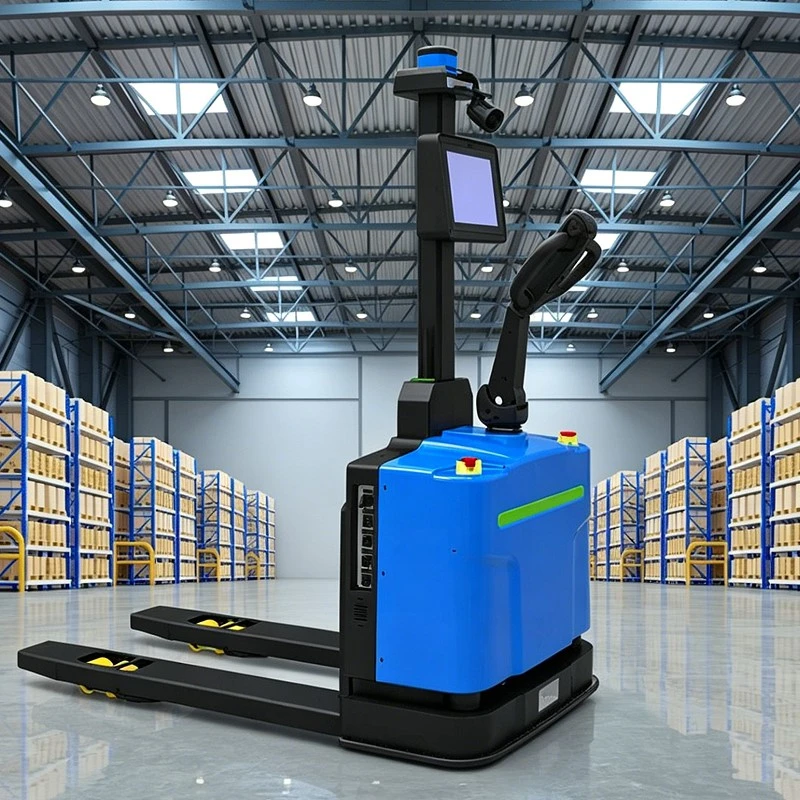

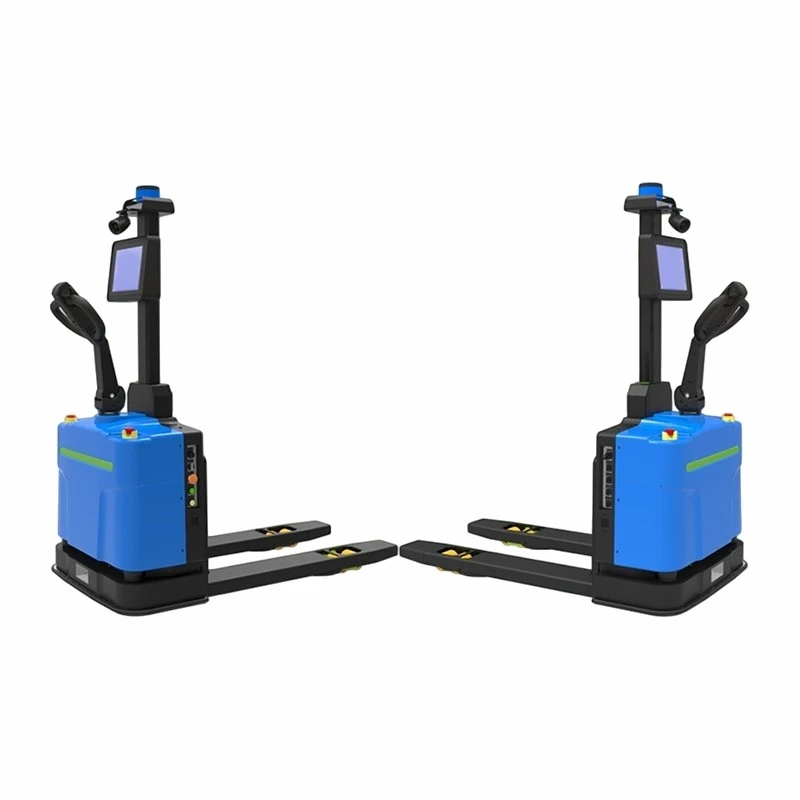

Purpose-built for in-plant logistics, the Material Transfer Forklift workshop transfer AGV automates material flow between warehouses and production lines, as well as work-in-progress transfer across manufacturing processes. It replaces manual pallet shuttle work to create a steady, predictable material supply rhythm for assembly lines.
The vehicle integrates smoothly with MES and production scheduling systems to execute on-demand material delivery. Its compact size allows it to move freely along production aisles and line-side buffer zones, delivering raw materials and picking up finished pallets without disrupting production operations. Consistent speed and timing help eliminate line-side stockouts and reduce work-in-progress inventory.
Workflow Benefits
- Automated raw material delivery to production stations
- Steady transport rhythm for balanced production pacing
- Reduced line-side inventory buildup and material waiting time
- Compatible with standard workshop pallet formats
- Repeatable cycle times for reliable production planning
Workshop-Focused Specs
- Load capacity: 1,500 kg
- Constant travel speed: 1.1 km/h
- Wheel base: 1,050 mm
- Load center distance: 600 mm
- Rubber drive wheels for clean workshop floors
Ideal for: Assembly workshops, auto parts plants, electronics manufacturing and any production facility with regular in-plant pallet transfer needs.
|
Characteristic |
No. |
Name |
Unit |
Parameter Performance Indicators and Functions |
|
1.1 |
Power |
Motor-driven |
||
|
1.2 |
Driving Mode |
Manual or automatic |
||
|
1.3 |
Rated load capacity |
Q(kg) |
1500 |
|
|
1.4 |
Load center distance |
c(mm) |
600 |
|
|
1.5 |
Load distance |
x(mm) |
868 |
|
|
1.6 |
Wheel base |
y(mm) |
1050 |
|
|
Weight |
2.1 |
Including the battery weight |
kg |
390 |
|
2.2 |
Full-load wheel load, drive side/loading side |
kg |
/ |
|
|
2.3 |
Wheel load under no-load conditions, on the drive side/loading side |
kg |
/ |
|
|
Car Body |
3.1 |
Wheel |
rubber wheel |
|
|
3.2 |
Wheel size, drive side |
mm |
Φ210x75 |
|
|
3.3 |
Wheel size, load-bearing side |
mm |
Φ84x84 |
|
|
3.4 |
Wheeled casters, drive side |
mm |
Φ75x50 |
|
|
3.5 |
Number of wheels (x = drive wheel), drive side/loading side |
pcs |
1x+2/4 |
|
|
3.6 |
Wheelbase (rear), load-bearing side |
mm |
367/507 |
|
|
3.7 |
Fork lift lifting height |
mm |
120 |
|
|
3.8 |
The height of the fork when lowered |
mm |
88±5 |
|
|
3.9 |
Total length |
mm |
1560 |
|
|
3.10 |
Body length |
mm |
450 |
|
|
3.11 |
width over sides of car body |
mm |
850 |
|
|
3.12 |
Fork size |
mm (mm) |
60/173/1150 |
|
|
3.13 |
External width of the fork |
mm |
540/620/680 |
|
|
3.14 |
Minimum ground clearance |
mm |
25 |
|
|
3.15 |
Width of the right-angle stacking channel |
mm |
2000 |
|
|
3.16 |
minimum turning radius |
mm |
1350 |
|
|
Function |
4.1 |
Speed, Full Load/No Load |
km/h |
1.1/1.1 |
|
4.2 |
Lifting speed, full load/empty load |
mm/s |
20/24 |
|
|
4.3 |
Descent speed, full load/empty load |
m/s |
33/20 |
|
|
4.4 |
Hill-climbing capability, under full load/empty load |
% |
/ |
|
|
4.5 |
Park Brake |
electromagnetic braking |
||
|
Motor |
5.1 |
Power of the drive motor |
kw |
1.0 |
|
5.2 |
Increase the motor power |
kw |
0.8 |
|
|
5.4 |
Battery Specification |
48V/50Ah |
||
|
5.5 |
Battery weight |
kg |
15 |
