Product Overview

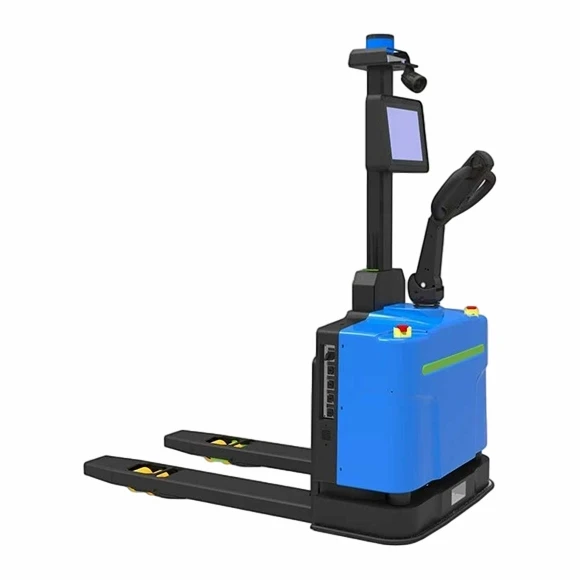

Automated forklift robert is a compact, multi-mode automatic pallet truck engineered for efficient horizontal material handling in intelligent warehousing and manufacturing environments. It is fully compatible with standard three-runner pallets (required fork hole height ≥ 110 mm, fork hole width ≥ 330 mm), and supports seamless switching between manual and automatic operation modes to flexibly adapt to mixed on-site working scenarios.

With a rated load capacity of 1,500 kg, this model features a space-saving compact structure, agile maneuverability and stable lifting performance. It supports rapid deployment, strong on-site adaptability and customized configurations to match specific operational requirements. The GF1500 is widely deployed in warehouse sorting, workshop material transfer, rack replenishment and other core intralogistics links.

Key Specifications At a Glance

Item	Specification
Model	GF1500
Rated Load Capacity	1,500 kg
Load Center Distance	600 mm
Operation Mode	Manual / Automatic dual-mode switchable
Max. Fork Lifting Height	120 mm
Travel Speed (Full / No Load)	1.1 km/h / 1.1 km/h
Battery Specification	48V / 50Ah
Overall Dimensions (L × W)	1,560 mm × 850 mm
Minimum Turning Radius	1,350 mm
Right-angle Stacking Aisle Width	2,000 mm

Full Technical Specifications

Basic Performance Parameters

Item	Unit	Specification
Rated Load Capacity	kg	1,500
Load Center Distance	mm	600
Load Distance	mm	868
Wheel Base	mm	1,050
Drive Type	-	Motor-driven
Operation Mode	-	Manual / Automatic switchable
Parking Brake	-	Electromagnetic braking

Body & Dimensional Parameters

Item	Unit	Specification
Overall Total Length	mm	1,560
Main Body Length	mm	450
Overall Body Width	mm	850
Total Weight (Including Battery)	kg	390
Fork Dimensions (Thickness / Width / Length)	mm	60 / 173 / 1,150
Fork External Width	mm	540 / 620 / 680 (optional)
Fork Lowered Height	mm	88 ± 5
Max. Fork Lifting Height	mm	120
Minimum Ground Clearance	mm	25
Minimum Turning Radius	mm	1,350
Right-angle Stacking Aisle Width	mm	2,000
Drive Wheel	-	Rubber wheel, Φ210 × 75 mm
Load-bearing Wheel Size	mm	Φ84 × 84
Drive Caster Size	mm	Φ75 × 50
Wheel Configuration	pcs	1 drive wheel + 2/4 load-bearing wheels
Rear Wheelbase (Load-bearing Side)	mm	367 / 507

Motion & Lifting Performance

Item	Unit	Specification
Travel Speed (Full Load / No Load)	km/h	1.1 / 1.1
Lifting Speed (Full Load / No Load)	mm/s	20 / 24
Lowering Speed (Full Load / No Load)	mm/s	33 / 20

Power & Battery System

Item	Unit	Specification
Drive Motor Power	KW	1.0
Lifting Motor Power	KW	0.8
Battery Specification	-	48V / 50Ah
Battery Weight	kg	15

Compatibility Note: For three-runner pallets, the fork hole height shall be no less than 110 mm, and the fork hole width shall be no less than 330 mm.

Core Advantages

01/

Wide Three-runner Pallet Compatibility: The truck is fully compatible with industry-standard three-runner pallets, adapting to most common pallet specifications in warehousing and manufacturing scenarios without additional pallet replacement costs.

02/

Flexible Dual-mode Operation: It supports free switching between fully automatic operation and manual control, which can flexibly cope with human-machine collaborative scenarios, temporary scheduling adjustments and abnormal working conditions, maximizing on-site operational flexibility.

03/

Stable 1,500 kg Heavy-load Capacity: With a rated load of 1,500 kg and optimized structural design, it delivers stable and reliable heavy-load handling performance, fully meeting the daily material turnover needs of warehouses and production workshops.

04/

Compact Design for Narrow Aisles: The compact body with a minimum turning radius of 1,350 mm enables flexible passage through narrow aisles and densely arranged rack areas, making full use of warehouse space and improving storage layout utilization.

05/

Reliable Electromagnetic Safety Brake: Equipped with an electromagnetic parking brake system, it ensures smooth and safe start-stop performance under both full-load and no-load conditions, with reliable braking to guarantee on-site operational safety.

06/

High-capacity Battery for Long Endurance: Standard configured with a 48V/50Ah large-capacity battery, it supports long-time continuous operation, reduces charging frequency during shifts, and effectively improves overall logistics operation efficiency.

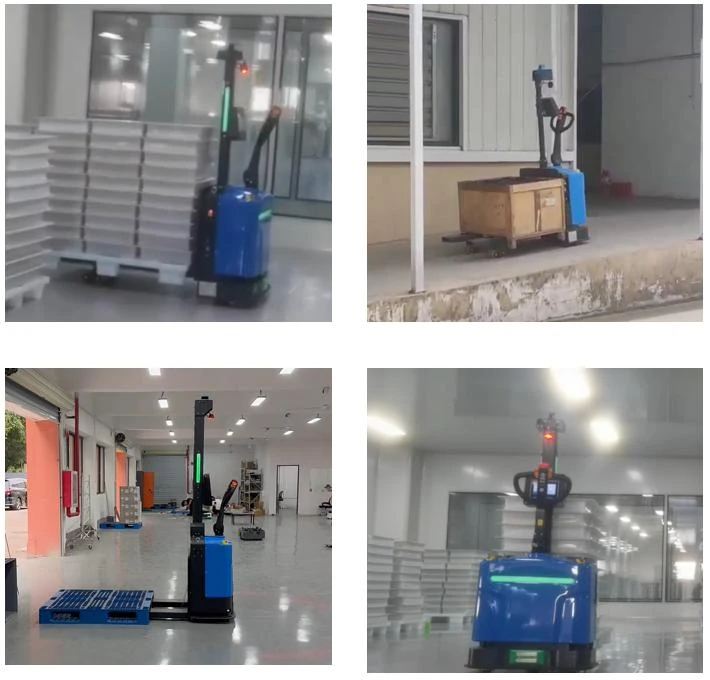

Typical Application Scenarios

Warehouse Inbound & Outbound Sorting: Used for horizontal pallet transfer between receiving areas, sorting zones and shipping areas in finished goods warehouses, realizing automatic and efficient cargo turnover.

Production Workshop Material Transfer: Applied to material distribution between warehouses and production lines, as well as work-in-progress transfer between processes, supporting stable and rhythmic production logistics.

Low-level Rack Replenishment: Cooperates with racking systems to complete pallet replenishment and picking operations in low-level rack areas, improving the automation level of rack area operations.

E-commerce & Retail Distribution Centers: Suitable for bulk pallet handling and order consolidation in e-commerce fulfillment centers and retail distribution hubs, efficiently coping with seasonal peak demand.
