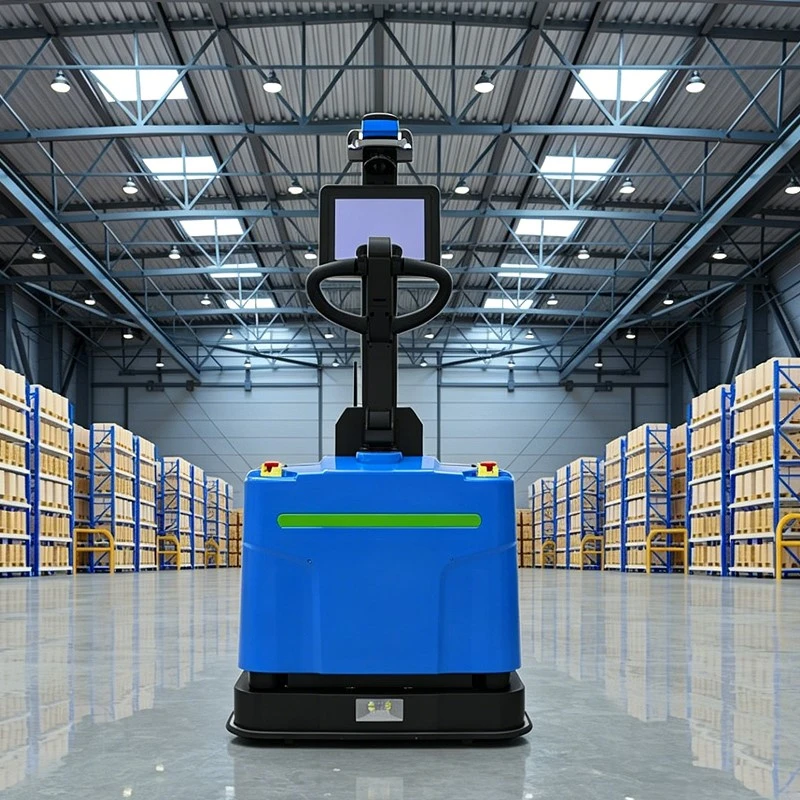

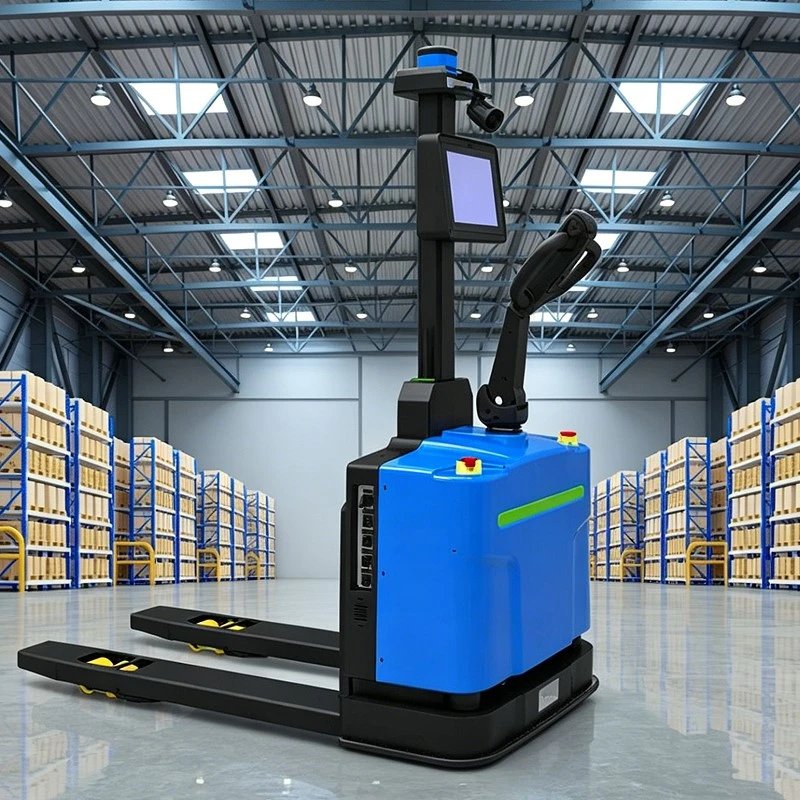

The Smart automated forklift is a reliable compact driverless pallet truck built for global warehousing and manufacturing facilities, delivering 1,500 kg rated load capacity, dual-mode operation and stable performance for daily pallet transport. Beyond hardware quality, we understand that uninterrupted operation and responsive support are critical for overseas customers.

We back every product unit with a full-range global service system, covering pre-sales guidance, on-site deployment and lifelong technical support. No matter where your facility is located, you get fast, professional and localized after-sales protection to maximize equipment uptime and lower long-term maintenance costs.

Product Overview

We back every GF1500 unit with a full-range global service system, covering pre-sales guidance, on-site deployment and lifelong technical support. No matter where your facility is located, you get fast, professional and localized after-sales protection to maximize equipment uptime and lower long-term maintenance costs.

Core Angle

Skip lengthy construction and infrastructure work - the GF1500 quick-deploy pallet AGV gets your automated logistics system up and running in days, not months. It requires no magnetic strips, floor markers or permanent site modifications, making it ideal for facilities that cannot interrupt daily operations for installation.

Using advanced navigation technology, the vehicle self-maps its operating environment and adjusts routes digitally. When your warehouse layout changes or new process flows are introduced, you can reconfigure paths via software without any on-site renovation. This plug-and-play nature makes it easy to scale up your fleet or relocate units between facilities as your business evolves.

Why Fast Deployment Matters

No floor modification, no magnetic strips, no construction work
Full on-site commissioning completed in a short time frame
Software-based route adjustment adapts to layout changes instantly
Units can be redeployed between different workshops or warehouses
Minimal disruption to daily operations during installation

Deployment Highlights

Infrastructure-free navigation system
Flexible route reconfiguration via software
Fast onboarding for on-site operators
Scalable fleet size to match growing volumes
Suitable for temporary or leased facilities

Ideal for: Leased warehouses, fast-growing e-commerce operations and businesses with frequently changing storage layouts.

Characteristic	No.	Name	Unit	Parameter Performance Indicators and Functions
	1.1	Power		Motor-driven
	1.2	Driving Mode		Manual or automatic
	1.3	Rated load capacity	Q(kg)	1500
	1.4	Load center distance	c(mm)	600
	1.5	Load distance	x(mm)	868
	1.6	Wheel base	y(mm)	1050
Weight	2.1	Including the battery weight	kg	390
	2.2	Full-load wheel load, drive side/loading side	kg	/
	2.3	Wheel load under no-load conditions, on the drive side/loading side	kg	/
Car Body	3.1	Wheel		rubber wheel
	3.2	Wheel size, drive side	mm	Φ210x75
	3.3	Wheel size, load-bearing side	mm	Φ84x84
	3.4	Wheeled casters, drive side	mm	Φ75x50
	3.5	Number of wheels (x = drive wheel), drive side/loading side	pcs	1x+2/4
	3.6	Wheelbase (rear), load-bearing side	mm	367/507
	3.7	Fork lift lifting height	mm	120
	3.8	The height of the fork when lowered	mm	88±5
	3.9	Total length	mm	1560
	3.10	Body length	mm	450
	3.11	width over sides of car body	mm	850
	3.12	Fork size	mm (mm)	60/173/1150
	3.13	External width of the fork	mm	540/620/680
	3.14	Minimum ground clearance	mm	25
	3.15	Width of the right-angle stacking channel	mm	2000
	3.16	minimum turning radius	mm	1350
Function	4.1	Speed, Full Load/No Load	km/h	1.1/1.1
	4.2	Lifting speed, full load/empty load	mm/s	20/24
	4.3	Descent speed, full load/empty load	m/s	33/20
	4.4	Hill-climbing capability, under full load/empty load	%	/
	4.5	Park Brake		electromagnetic braking
Motor	5.1	Power of the drive motor	kw	1.0
	5.2	Increase the motor power	kw	0.8
	5.4	Battery Specification		48V/50Ah
	5.5	Battery weight	kg	15
