Product Overview

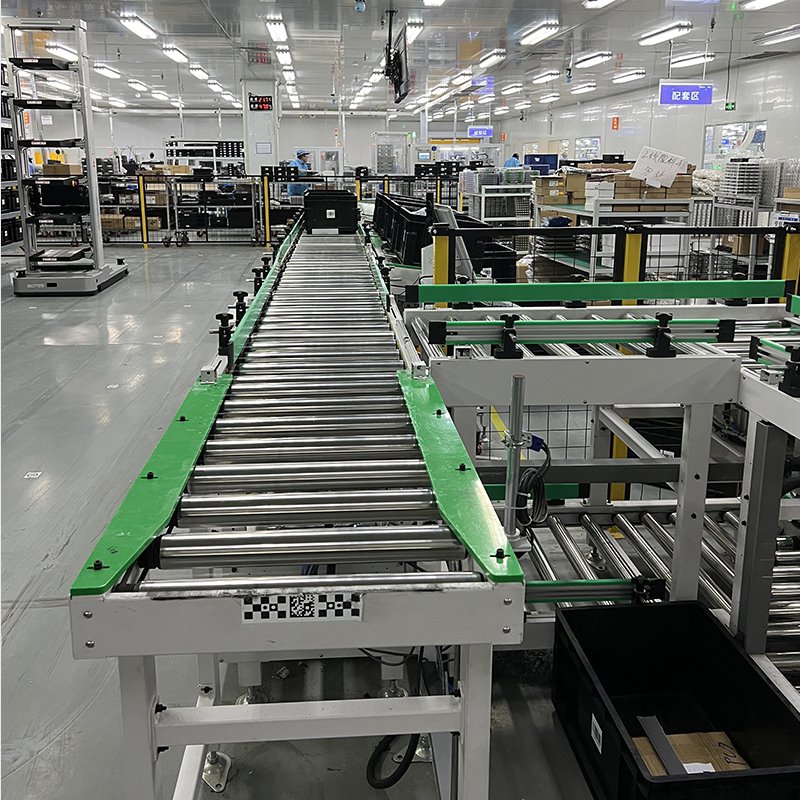

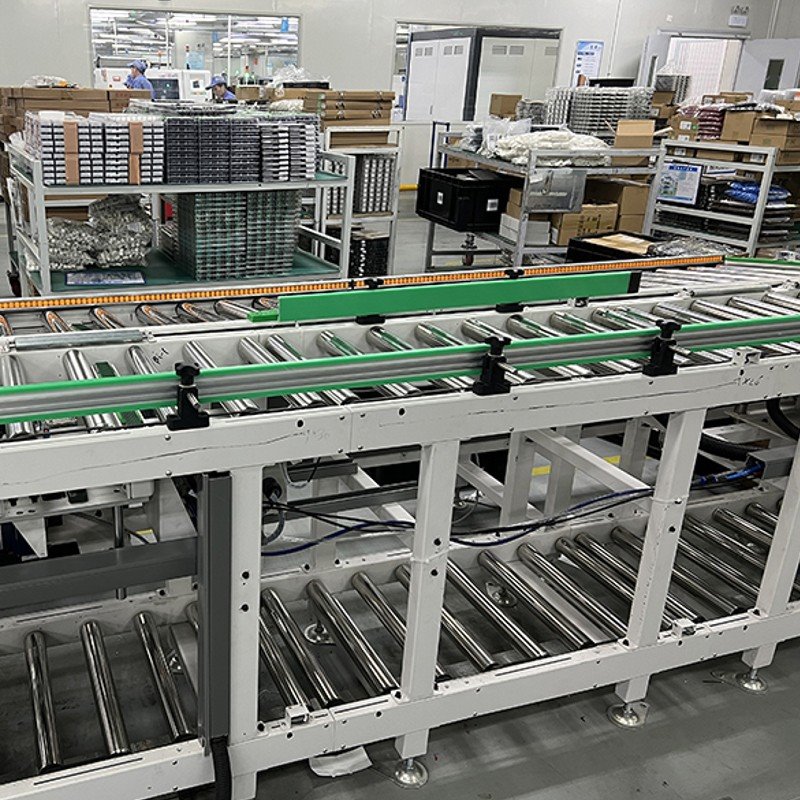

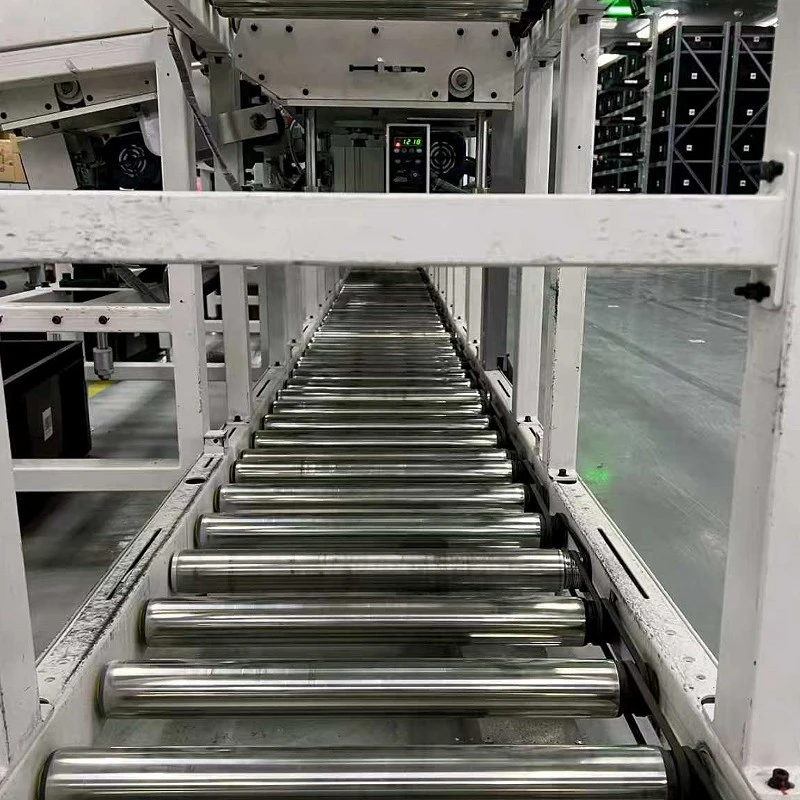

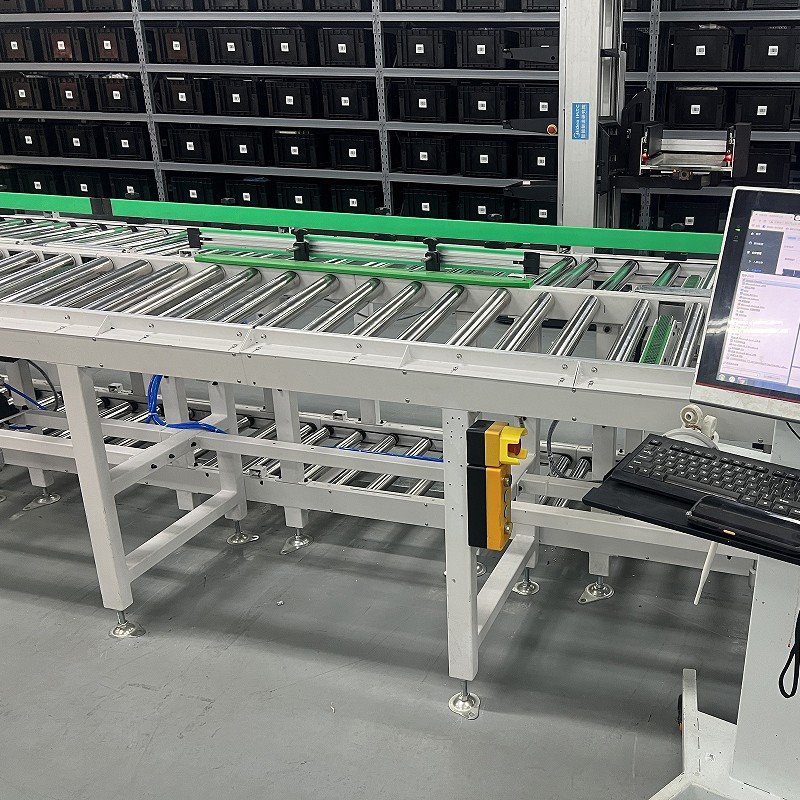

Gravity roller conveyor is a non-powered, cost-efficient material handling solution that relies on the gravitational force of goods to achieve automatic sliding along an inclined track. Composed of freely rotating rollers mounted on a fixed frame, it requires no motor drive and delivers smooth conveyance for flat-bottomed unit loads such as cartons, plastic totes, turnover boxes and light pallets.

Featuring a simple modular structure, flexible layout and zero energy consumption, it can be freely spliced into straight lines, curves and split paths, and is widely used for short-distance transfer, temporary buffering, manual picking assistance and loading/unloading docking. It is an ideal choice for scenarios pursuing low investment, quick deployment and maintenance-free operation, and can be flexibly matched with powered conveyor lines, sorting systems and warehouse workstations.

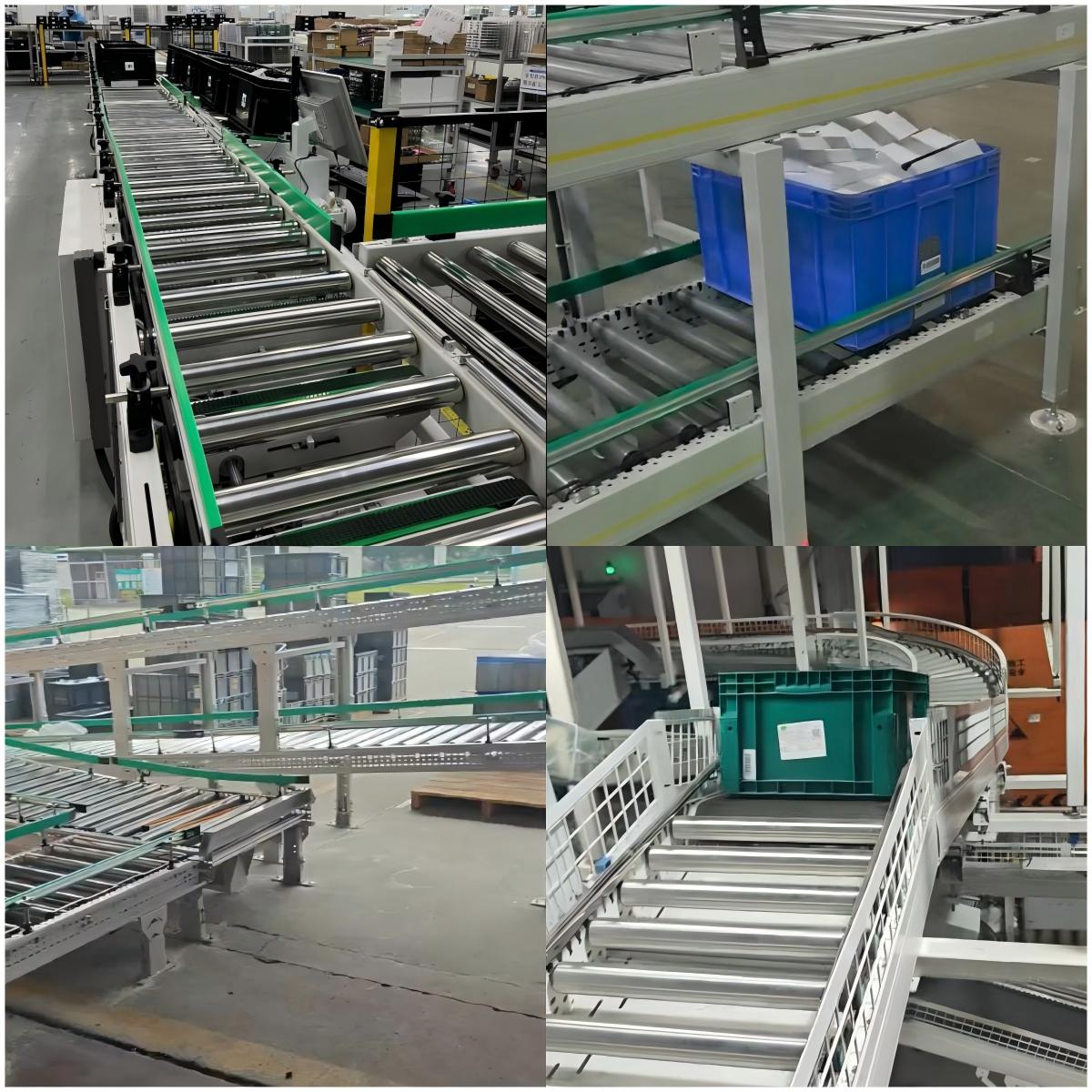

Main Types & Features

Conveyor Type	Core Feature	Typical Application
Straight Gravity Roller Conveyor	Standard linear unit, easy to assemble and adjust length, most widely used universal model	Workstation material transfer, carton temporary storage, short-distance conveying between processes
Curved Gravity Roller Conveyor	90° / 180° arc design, guides goods to steer smoothly by optimized roller arrangement, no external power needed	Line direction switching, loop buffering system, corner layout of workshop
Gravity Roller Conveyor with Stop Mechanism	Equipped with manual or pneumatic stopper, controls goods sliding and queuing, supports single-piece release	Picking workstation feeding, assembly line buffering, cargo sorting and queuing
Telescopic Gravity Roller Conveyor	Retractable structure, adjustable length, movable with casters, fast deployment	Truck loading & unloading, temporary conveying line expansion, logistics dock transfer
Heavy-duty Pallet Gravity Conveyor	Thick-walled steel rollers and reinforced frame, designed for light and medium pallet sliding	Pallet temporary storage area, forklift docking platform, workshop pallet circulation
Stainless Steel Gravity Roller Conveyor	304 stainless steel body, waterproof and corrosion-resistant, easy to clean	Food processing workshop, pharmaceutical turnover, cold storage and humid environment

General Technical Specifications

Item	Parameter Range	Notes
Roller Diameter	φ38mm / φ50mm / φ60mm / φ76mm	Selected according to load and cargo bottom condition
Load Capacity	30 ~ 800 kg per meter	Light-duty for cartons, heavy-duty for pallets
Effective Conveying Width	200mm / 300mm / 400mm / 500mm / 600mm / 800mm / 1200mm	Matches standard tote and pallet dimensions
Roller Center Distance	50mm / 75mm / 100mm / 125mm / 150mm	Ensures at least 3 rollers support one cargo unit
Recommended Inclination Angle	1.5° ~ 5°	Adjusted by cargo weight, bottom friction and conveying speed
Frame Material	Carbon steel powder coated / 304 stainless steel	RAL color customizable for carbon steel type
Roller Material	Galvanized steel / stainless steel / PVC coated	PVC type for scratch-sensitive cargo surface
Standard Single Section Length	1000mm / 1500mm / 2000mm / 3000mm	Modular splicing for any total length
Operating Temperature	-10℃ ~ +45℃ (standard type); -30℃ ~ +45℃ (cold storage type)	Special bearings for low-temperature environment

Core Advantages

Zero power consumption, no motor and control system required, greatly reduces operation energy cost
Simple and reliable structure, few wearing parts, extremely low daily maintenance cost and long service life
Modular standardized design, fast on-site assembly and disassembly, convenient length adjustment and relocation
No electrical wiring needed, flexible layout, can be installed and put into use at any position in the warehouse
Quiet and smooth operation, no mechanical noise of motor and transmission, suitable for office-adjacent and low-noise workshops
Supports flexible inclination adjustment, controls conveying speed by adjusting slope to match different operation rhythms
Strong compatibility, suitable for all kinds of flat-bottomed goods, and can be seamlessly docked with powered conveyor lines
Light overall weight, part of models are equipped with casters, supporting mobile use and temporary line construction

Typical Application Scenarios

01/

Warehouse Loading & Unloading Docks: Telescopic and fixed gravity roller conveyors are installed between the truck compartment and the warehouse platform to realize fast sliding transfer of cartons and totes, eliminating manual carrying distance and significantly improving loading and unloading efficiency.

02/

Order Picking & Sorting Buffer Zones: Inclined gravity roller lines are arranged behind the picking workstations. Picked goods slide to the sorting area automatically by gravity, realizing queuing and temporary storage of orders without power, which is suitable for e-commerce and retail distribution centers.

03/

Production Line Workstation Connection: Gravity roller tables are set between adjacent assembly processes, so that workpieces can be transferred to the next station by self-weight after processing, realizing beat-type circulation of materials and reducing redundant handling actions.

04/

Carton & Tote Temporary Storage Areas: Multi-section parallel gravity roller racks are used as first-in-first-out (FIFO) buffer storage. Goods are replenished from the high end and taken from the low end, which is suitable for material turnover of small parts and semi-finished products.

05/

Food & Light Industry Workshops: Stainless steel gravity roller conveyors are used for finished product transfer and packaging line docking in clean workshops. They are resistant to water washing and corrosion, meet hygiene requirements and have no risk of oil pollution from power devices.

06/

Pallet Circulation & Staging Areas: Heavy-duty gravity roller sections are applied for empty pallet storage and short-distance transfer. Pallets slide in sequence under gravity, cooperating with forklift operation to optimize the logistics rhythm of the pallet yard.
